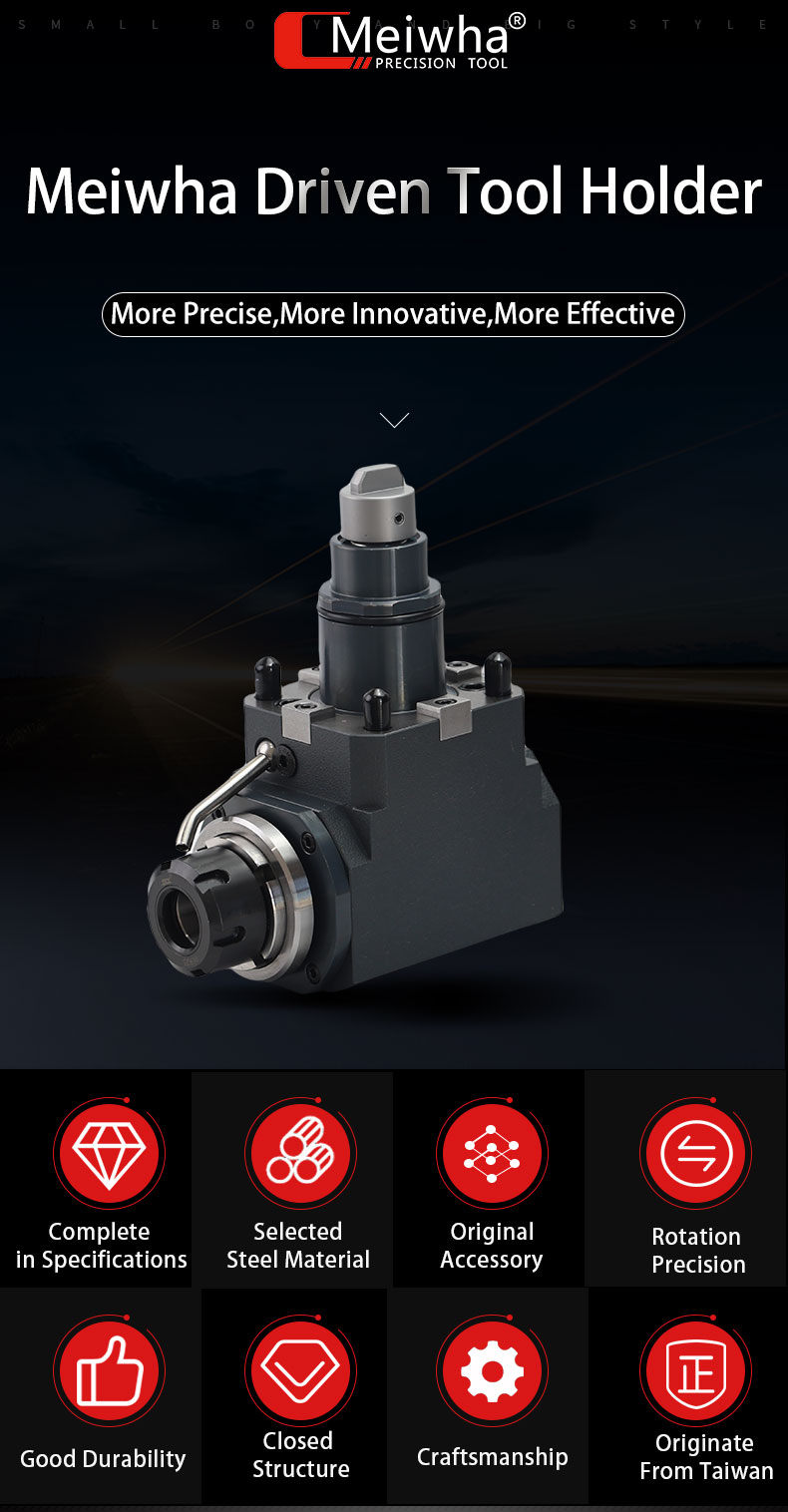

MeiWha Driven Tool Holder

Short Description:

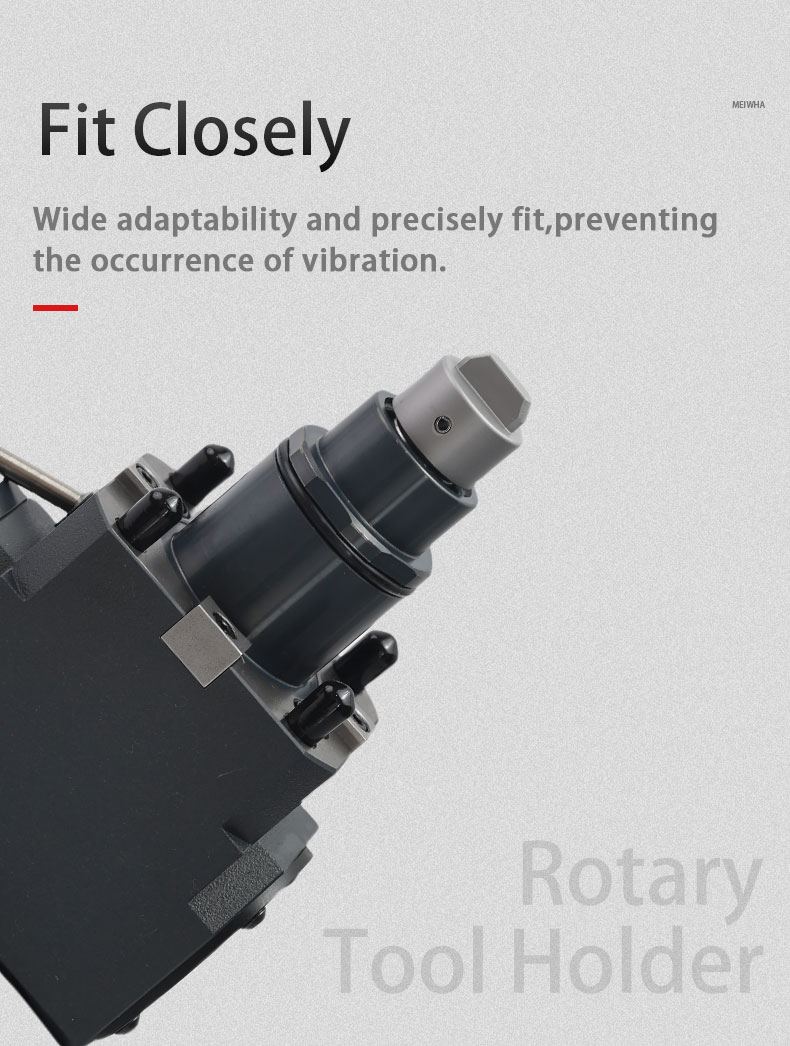

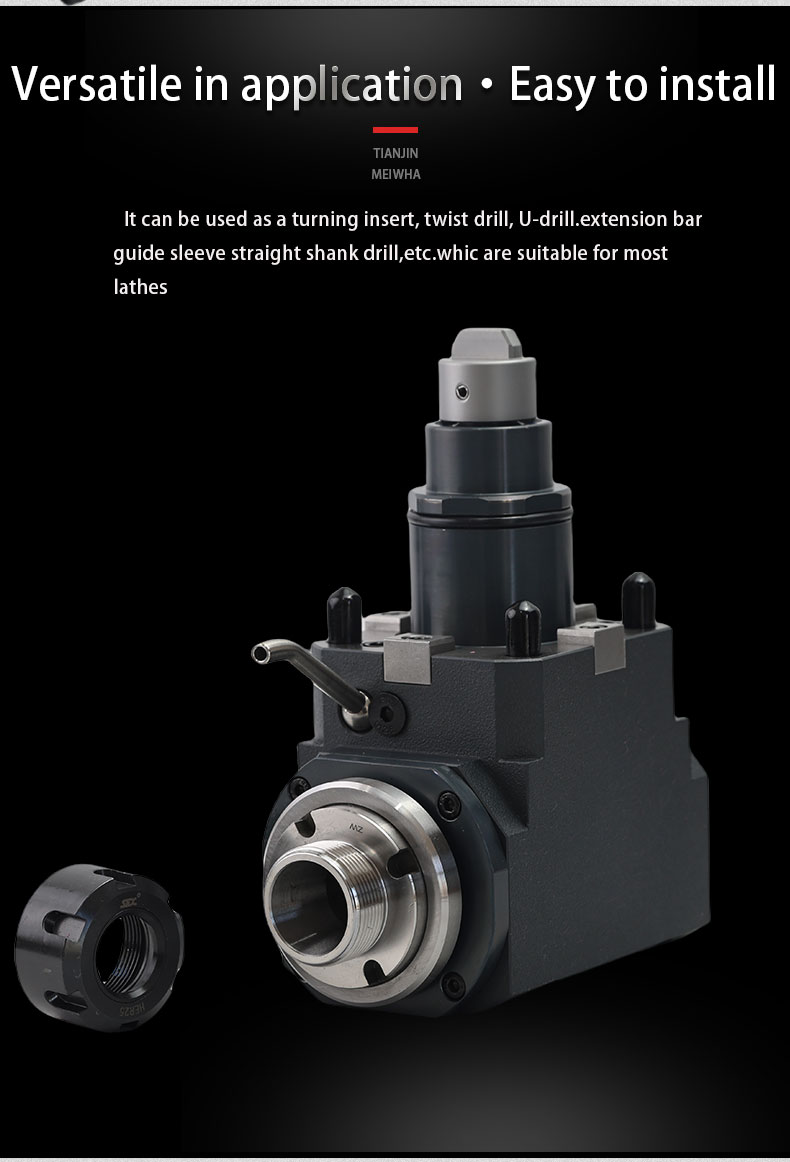

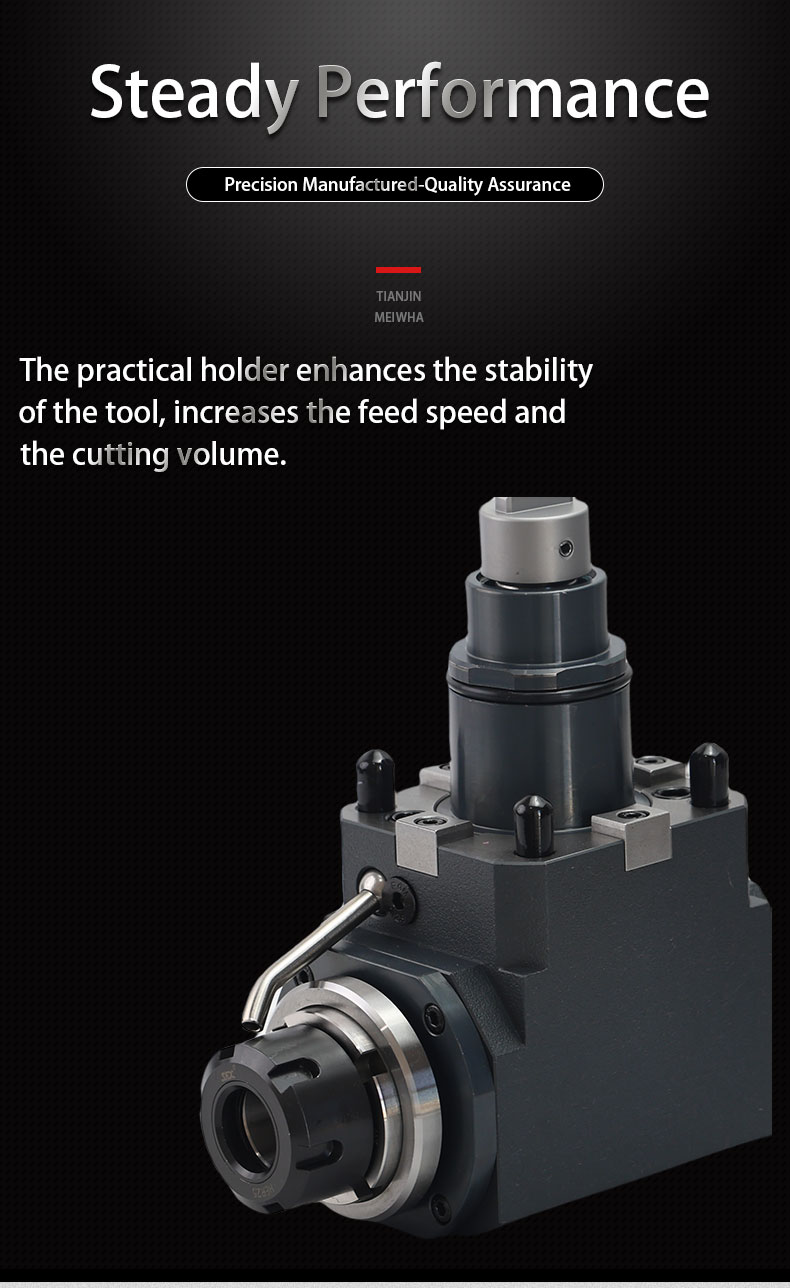

Function Description: The BMT40/0/25 Driven Tool Holder solves the process requirements such as drilling, tapping, chamfering, and milling on the radial direction of the workpiece. The front and rear of the spindle are designed with a combination structure of imported high-precision tapered roller bearings, with zero bearing clearance and end face sealing. It features large cutting depth, fast cutting speed, no vibration, long tool life, high precision, and high surface finish.

Precautions: When installing or removing tools, it must be done at the tool post position and two C-shaped wrenches should be used for locking or unlocking. Do not use one wrench or perform disassembly or assembly or strike the wrench outside the tool post position, otherwise it may damage the transmission sleeve of the power tool post or the internal components of the tool post.

Send email to us

Product Detail

Product Tags

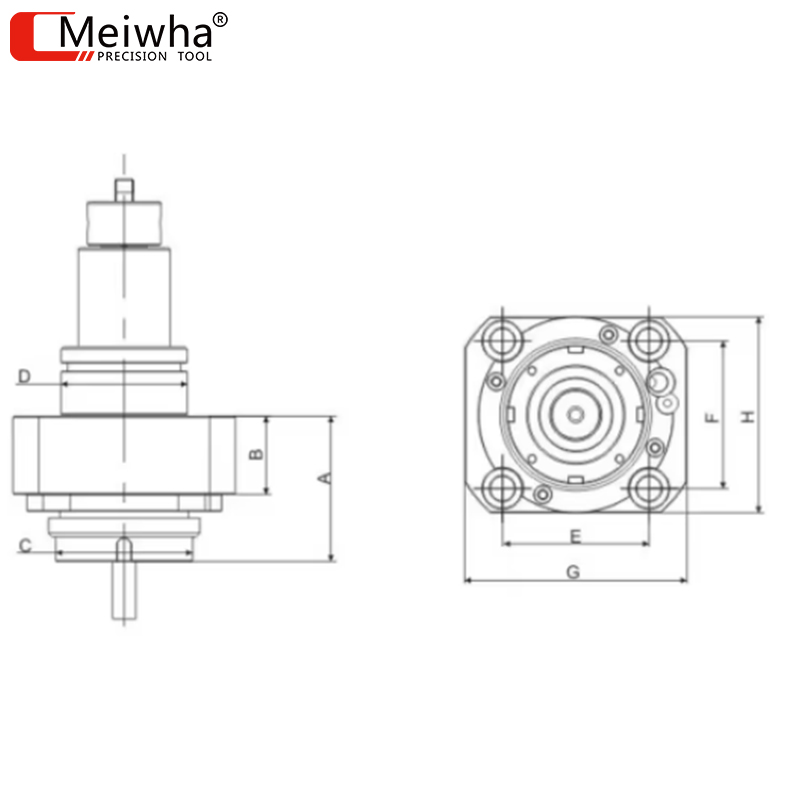

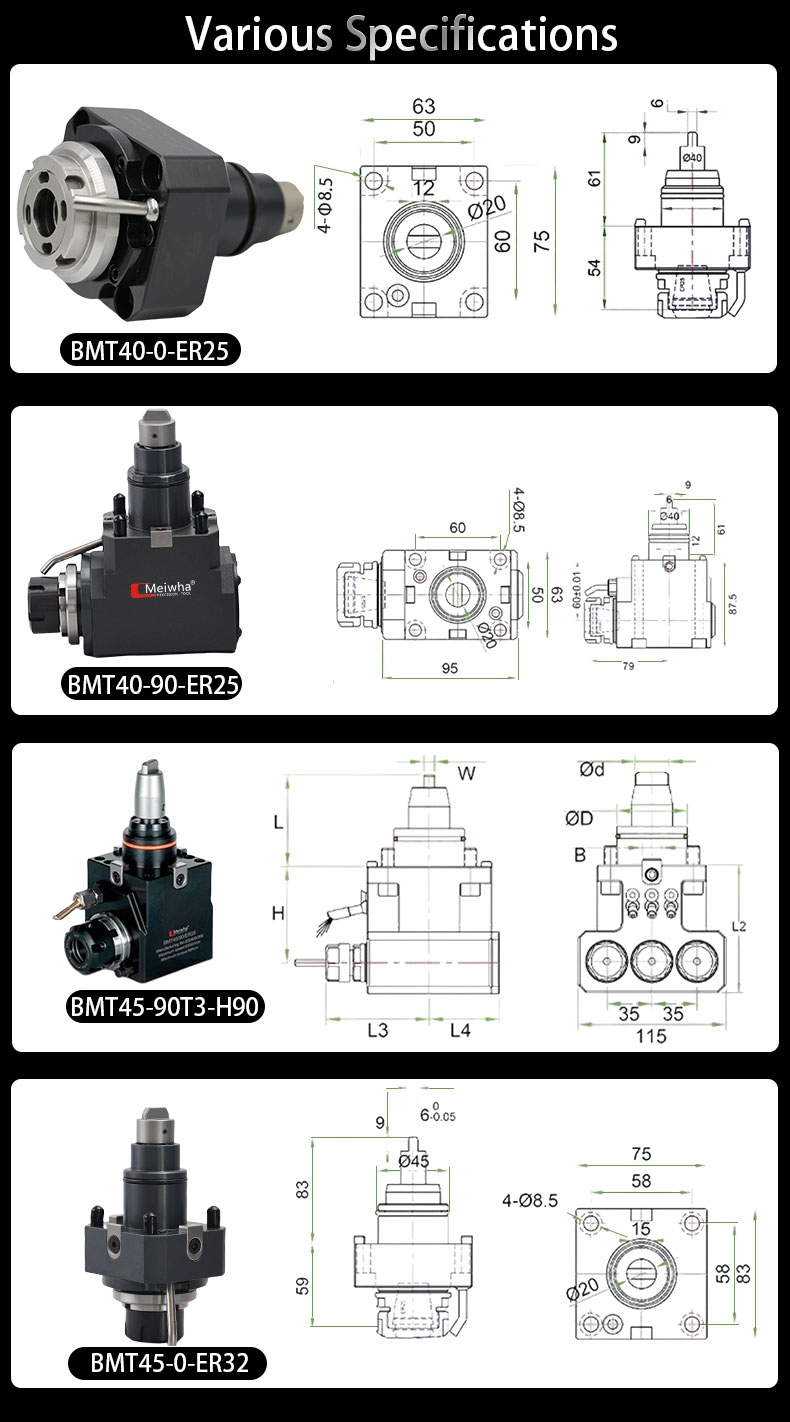

Mdoel	A	B	C	D	E	F	G	H	N.W(KG)
BMT40-0-ER20	68.2	33	ER20(1-13)	40	60	50	75	63	1.5
BMT40-0-N-ER20	58.5	33	N-ER20(1-13)	40	60	50	75	63	1.5
BMT40-0-ER25	70.2	33	ER25(1-16)	40	60	50	75	63	1.5
BMT45-0-ER25	70.2	33	ER25(1-16)	45	58	58	85	75	2.4
BMT55-0-ER25	71.3	34	ER25(1-16)	55	64	64	97	85	3.3
BMT55-0-ER32	71.3	34	ER32(2-20)	55	64	64	97	85	3.3
BMT55-0-N-ER32	63	34	N-ER32(2-20)	55	64	64	97	85	3.3
BMT65-0-ER40	74.3	37	ER40(3-26)	65	70	73	94	94	4.2
BMT65-0-N-ER32	74.3	37	N-ER32(2-20)	65	70	73	94	94	4.2
BMT-0-ER40	82.3	43	ER40(3-26)	75	90	90	112	112	5.1
“`	“`	“`	“`	“`	“`	“`	“`	“`	“`
