Meiwha Inner Oil Colling Holder

Short Description:

Product hardness: 58HRC

Product material: 20CrMnTi

Product water pressure: ≤160Mpa

Product rotational speed:5000

Applicable spindle: BT30/40/50

Product feature: External cooling to internal cooling, center water outlet.

Send email to us

Product Detail

Product Tags

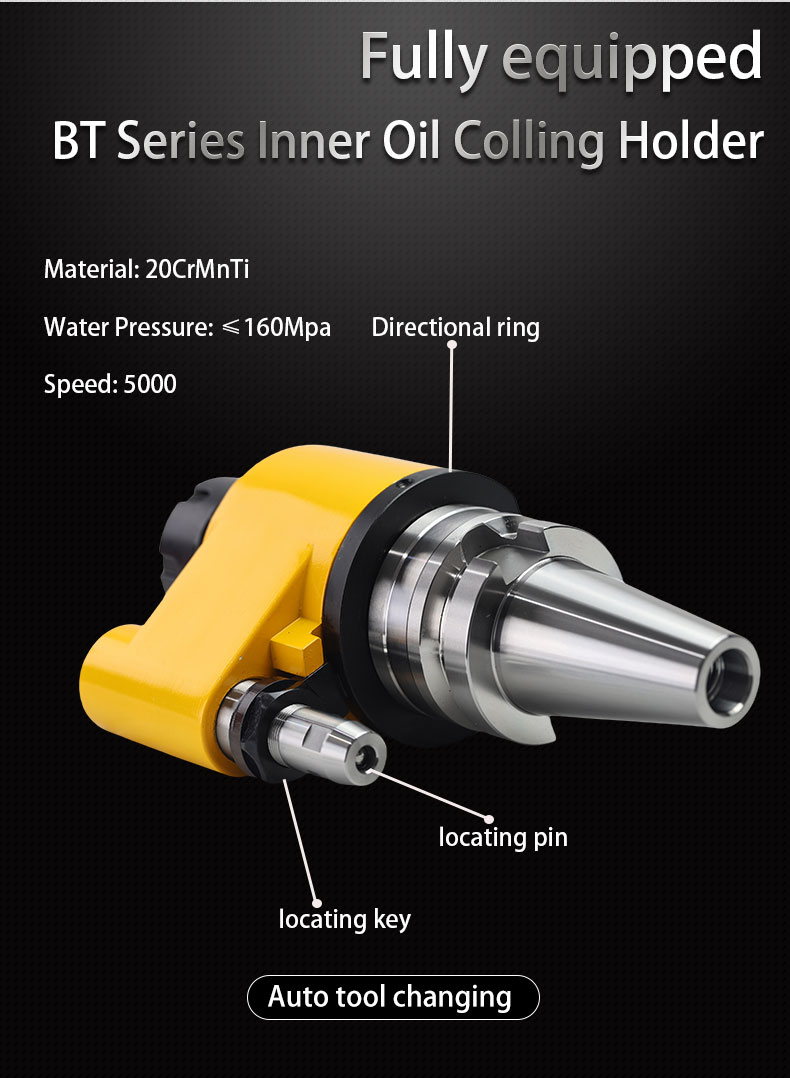

BT Series Inner Oil Colling Hodler

Meiwha Inner Oil Colling Holder

BT30/40/50 Series

Manual tool changing

Use NSK imported bearings

Applicable to vertical machining centers and horizontal machining centers

The Maximum rotational speed can reach up to 5000RPM

Automatic tool change

Sealed structure with built-in bearings

Improve processing efficiency and achieve excellent internal pressure sealing and chip removal effect. The holder is much harder and has a longer service life.

The distance between the holder and the center of the positioning column.

BT50=80mm BT10=65mm

Sealing structure can withs withstand.

1.6Mpa Water pressure

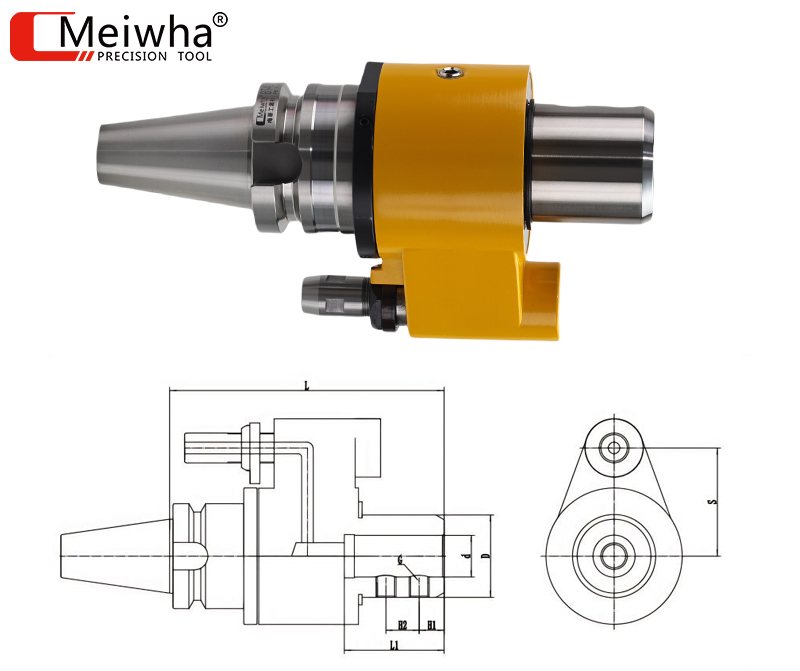

Meiwha OSL Inner Oil Colling Holder Model Reference Table

OSL is a side-side-fix oil-line toolholder

Cat.No		d	D	L	L1	H1	H2	S	G
BT/BBT40	OSL16-150L	16	49	150	48	25	/	65	M12*1.75
	OLS20-150L	20	49	150	50	25	/	65	M12*1.75
	OSL25-165L	25	49	150	56	15	20	65	M16*2.0
	OSL32-170L	32	59	170	60	15	20	65	M16*2.0
BT/BBT50	OSL16-165L	16	59	165	48	25	/	65	M12*1.75
	OSL20-165L	20	59	165	50	25	/	80	M12*1.75
	OSL25-165L	25	59	165	56	15	20	80	M16*2.0
	OSL32-165L	32	59	165	60	15	20	80	M16*2.0
	OSL40-165L	40	59	165	70	15	25	80	M14*2.0
