BT-HMC Hydraulic Holder

BT-HMC Hydraulic Holder Featured Image

Short Description:

Product Material: 20CrMnTi

Product Hardness: 56-60°

Standard Rotation Speed: 25000

Surface Roughness: ＜0.002-0.005mm

Jumping Accuracy: 0.003-0.005mm

Main Feature:

1.Quick clamping with high clamping force.

2.High-speed, dynamic balance operation.

3.The seismic-resistat surface has a high degree of smoothness.

4.Can extend the lifespan of the cutting tools.

Send email to us

Product Detail

Product Tags

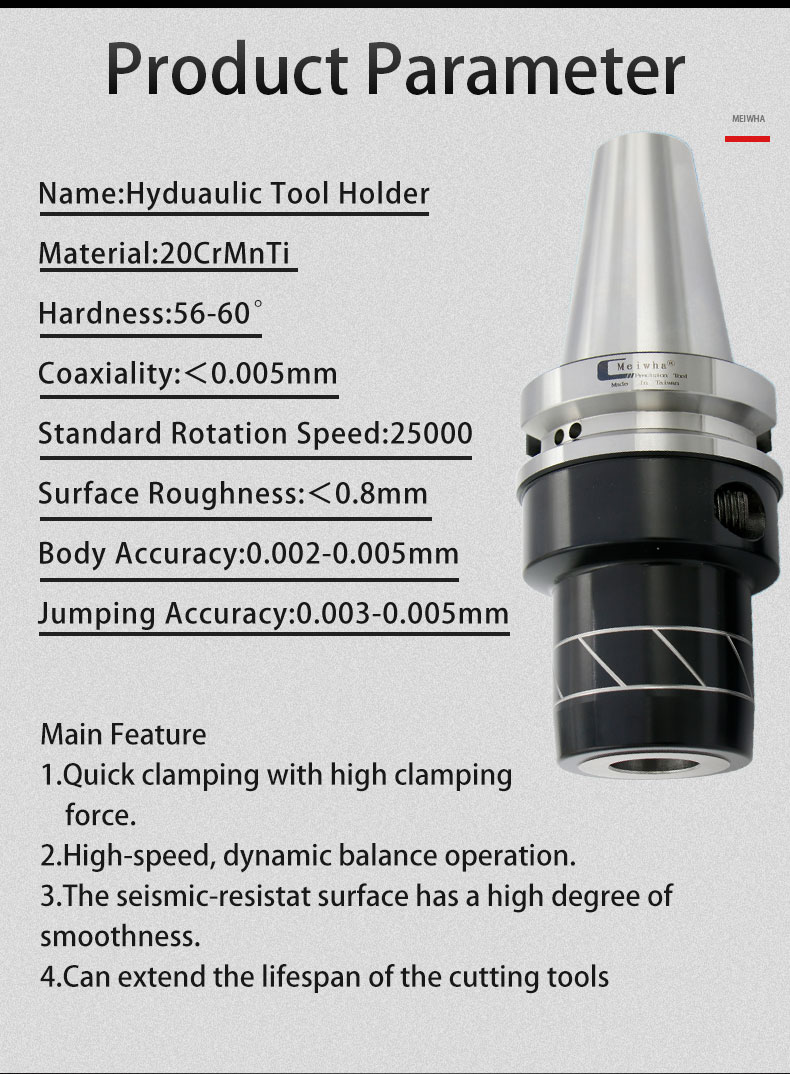

Product Parameter

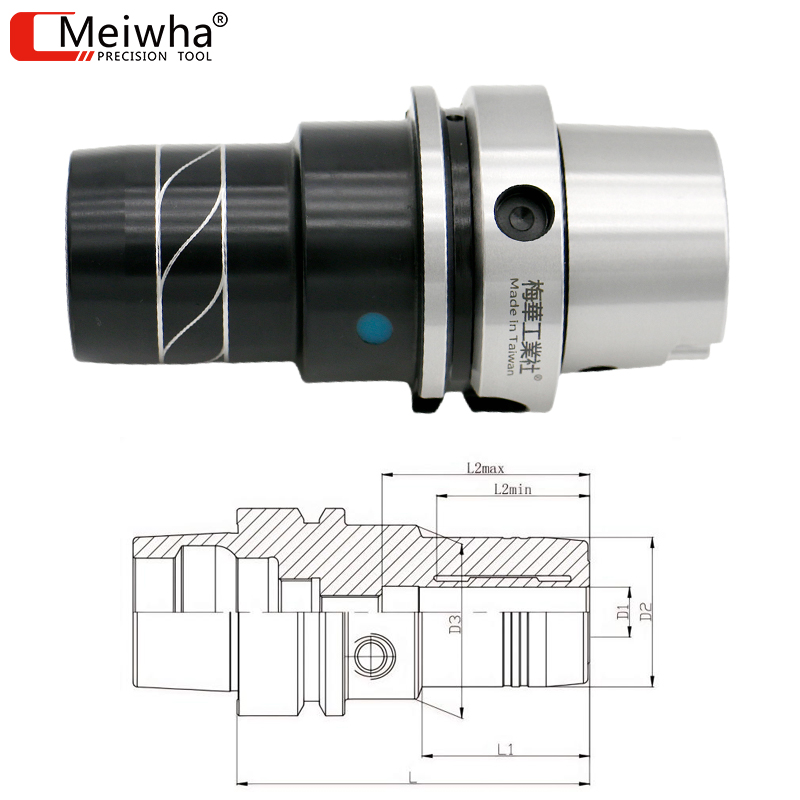

液压刀柄参数图

Cat.No		Size
Cat.No		D1	D2	D3	L	L1	L2max	L2min	M
HSK40E	HMC06-70L	6	30	42	70	25.5	26	38	M5
	HMC08-70L	8	32		70	26	28	38	M6
	HMC10-75L	10	34		75	32.6	34	45	M8
	HMC12-80L	12	36		80	40	36	50	M8
HSK50E	HMC06-70L	6	30		70	25.5	26	38	M5
	HMC08-70L	8	32		70	26	28	38	M6
	HMC10-80L	10	34		80	32.6	34	45	M8
	HMC12-85L	12	36		85	40	36	50
	HMC16-90L	16	40		90	43	41	52
	HMC20-90L	20	42		90	64	41	52
HSK50A	HMC06-70L	6	30		70	25.5	26	38	M5
	HMC08-70L	8	32		70	26	28	38	M6
	HMC10-80L	10	34		80	32.6	34	45	M8
	HMC12-85L	12	36		85	40	36	50
	HMC16-90L	16	40		90	43	41	52
	HMC20-90L	20	42		90	64	41	52
HSK63A	HMC06-80L	6	32	48	80	32	29	46	M5
	HMC06-125L				125	38.5	28	44.5
	HMC06-150L				150	38.5	28	44.5
	HMC08-80L	8	34		80	32	29	46	M6
	HMC08-125L	8	32		125	38.5	28	44.5
	HMC08-150L	5	34		150	38.5	28	44.5
	HMC10-80L	10	36	50	80	32	37	50	M8
	HMC10-125L				125	40		51
	HMC10-150L				150	40		51
	HMC12-80L	12	38		80	32	32	50
	HMC12-125L				125	41	37	51
	HMC12-150L				150	41	37
	HMC14-80L	14	39		80	32	40
	HMC14-125L	14	39		125	42
	HMC16-90L	16	41		90	42.5
	HMC16-125L		42		125	43		52
	HMC16-150L		41		150	42.5		51
	HMC18-90L	18	42		90	41
	HMC18-125L	18			125
	HMC20-90L	20			90			52
	HMC20-120L		44		120			52.5
	HMC20-150L		42		150			52
HSK100A	HMC06-90L	6	30	48	90	31	28	44.5	M5
	HMC08-90L	8	32	48	90	31	28	44.5	M6
	HMC10-105L	10	36	50	105	38	37	51	M8
	HMC12-105L	12	38	52		40	37
	HMC14-105L	14	39	52		41	41
	HMC16-105L	16	41	54		42		52	M12
	HMC18-105L	18	42	50		41
	HMC20-105L	20	43	54		41
	HMC25-110L	25	52	62	110	55	49	65
	HMC32-110L	32	63	72	110	57	52	65

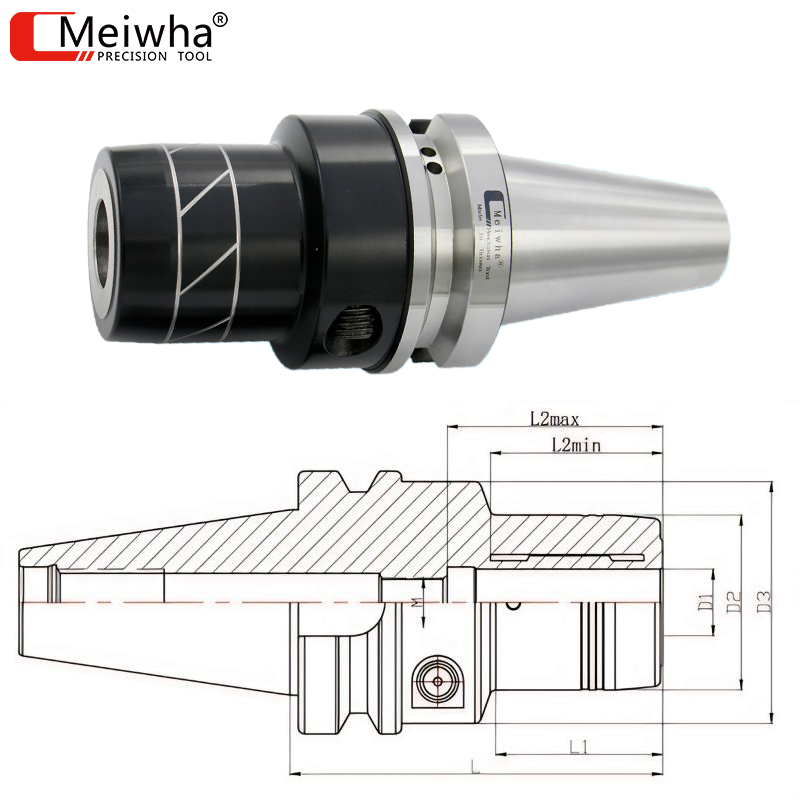

BT液压刀柄

Cat.No		Size
Cat.No		D1	D2	D3	L	L1	L2max	L2min	M
BT/BBT30	HMC03-60L	3	21	45	60	29	23	84	M5
	HMC04-60L	4	21	45	60	29	23	84
	HMC06-75L	6	30	46	75	24	28	50
	HMC08-75L	8	32				28		M6
	HMC10-75L	10	34				34		M8
	HMC12-75L	12	36				36
	HMC14-90L	14	38		90	25	41	52
	HMC16-90L	16	40			40
	HMC18-90L	18	42			33
	HMC20-90L	20	46			41
BT/BBT40	HMC04-90L	4	28			8	24	42	M5
	HMC06-90L	6	30			38	28	44	M5
	HMC08-90L	8	32	48		38	28	44	M6
	HMC10-90L	10	36	52		40	37	51	M8
	HMC12-90L	12	38	54			37	51	M8
	HMC14-90L	14	40	56			41	52	M12
	HMC16-90L	16	42	58
	HMC18-90L	18	43	59
	HMC20-90L	20	46	60				53
	HMC25-105L	25	52	62	105	55	49	65
BT/BBT50	HMC06-105L	6	30	46		38	28	44	M5
	HMC10-105L	10	36	52		40	37	51	M8
	HMC12-105L	12	38	54			37	51	M8
	HMC14-105L	14	40	56			41	52	M12
	HMC16-105L	16	42	58
	HMC18-105L	18	43	59
	HMC20-120L	20	46	60	120			53
	HMC25-120L	25	52	62		55	49	65
	HMC32-120L	32	63	72		56	52	65

Meiwha Hydraulic Tool Holder

High Concentricity/Large Clamping Force

CNC Machine Tool Holder

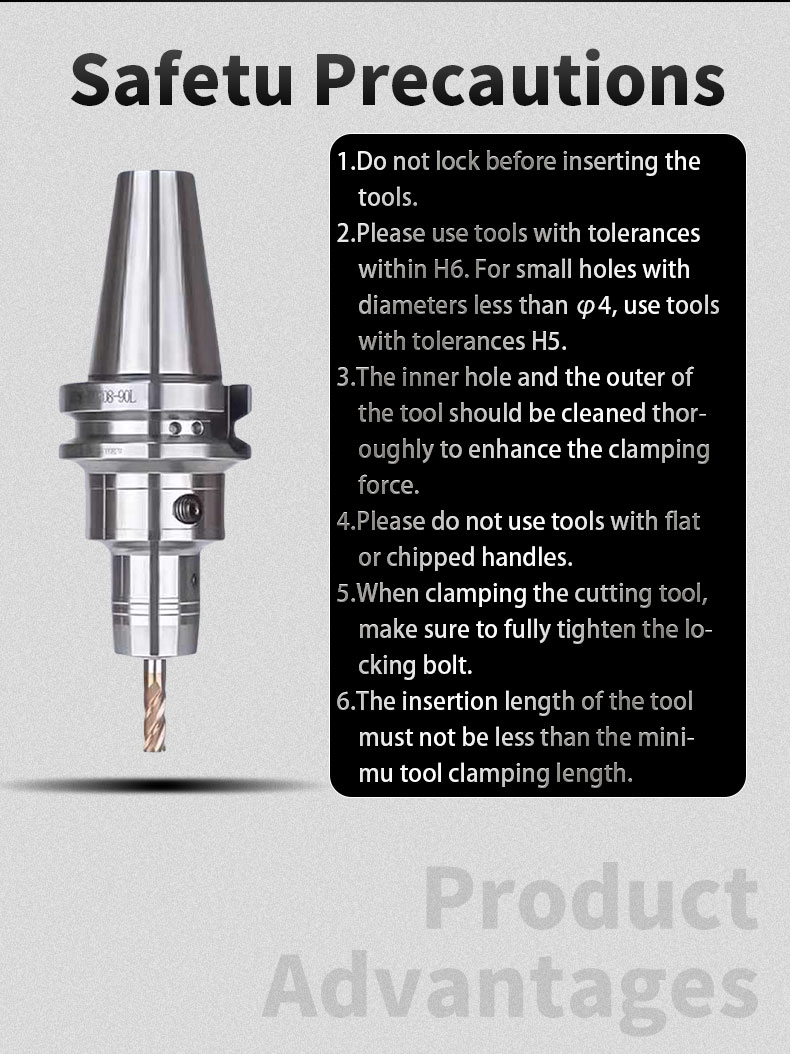

Precautions:

1.Do not lock begore inserting the tools.

2.Please use tools with tolerances within H6. For small holes with diameters less the D4, use tool with tolerances H5.

3.The inner hole and the outer of the tool should be cleaned thoroughly to enhance the clamping force.

4.Plaese do not use tools with flat or chopped handles.

5.When clamping the cutting tool, make sure to fully tighten the locking bolt.

6.The insertion length of the tool must not be less than the minim-mu tool clamping length.

Tool Holders

Tool Holders

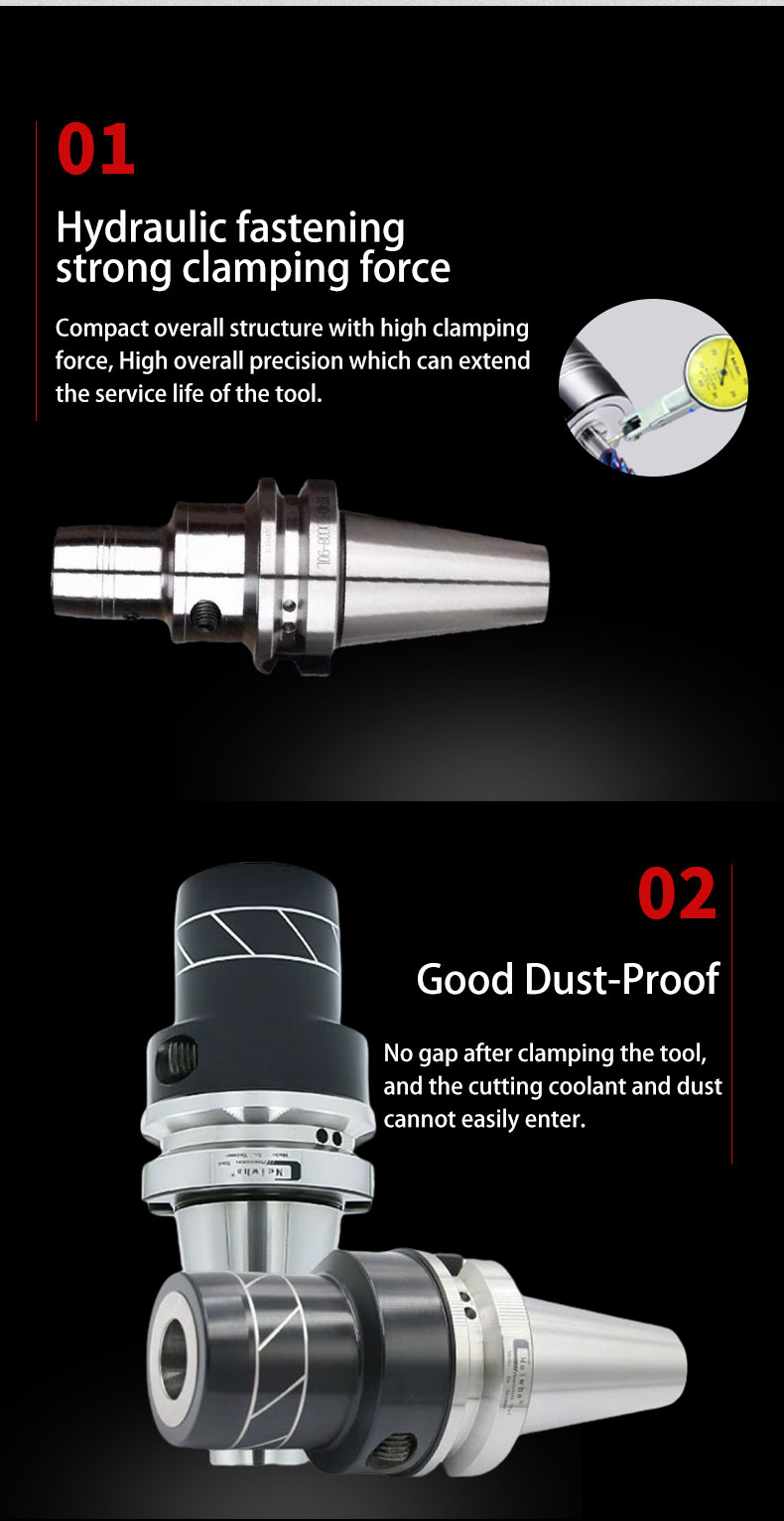

Hydraulic fastening strong clamping force

Compact overall structure with high clamping force, High overall precision which can extend the service life of the tool.

Good Dust - Proof

No gap after clamping the tool, and the cutting coolant and dust cannot easily enter.

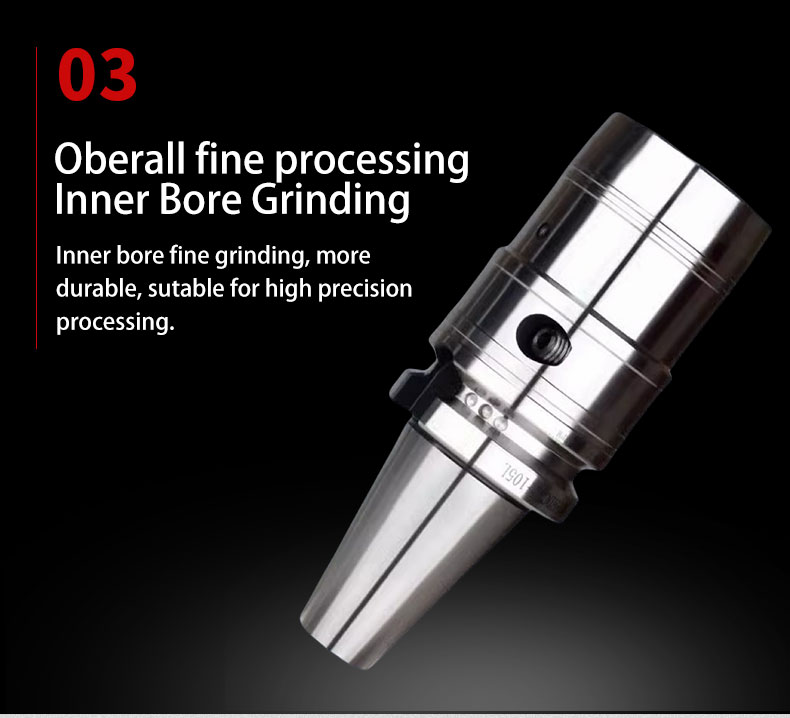

Obreall fine processing inner bore grinding.
