BT-SDC Back Pull Handle

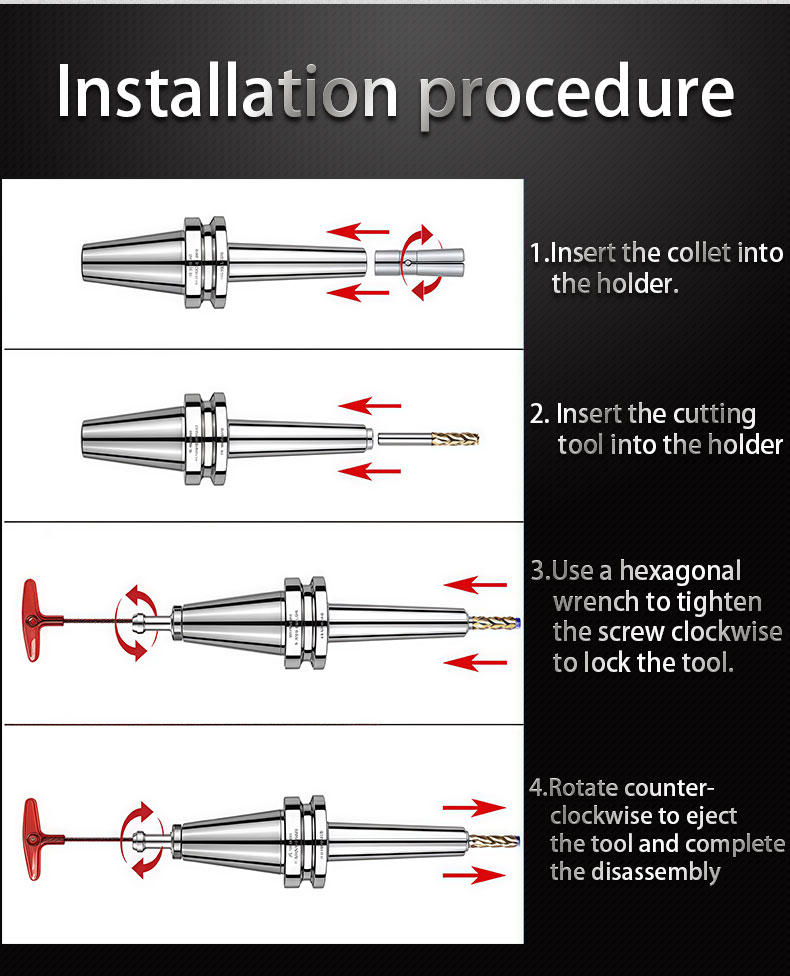

Meiwha Pull Back Holder Installation Procedure:
1.Insert the collet into the holder.
2.Insert the cutting tool into the holder.
3.Use a hexagonal wrench to tighten the screw clockwise to lock the tool.
4.Rotate counterclockwise to eject the tool and complete the disassembly.
There are three types of Meihua CNC BT tool holder: BT30 tool holder, BT40 tool holder, BT50 tool holder.

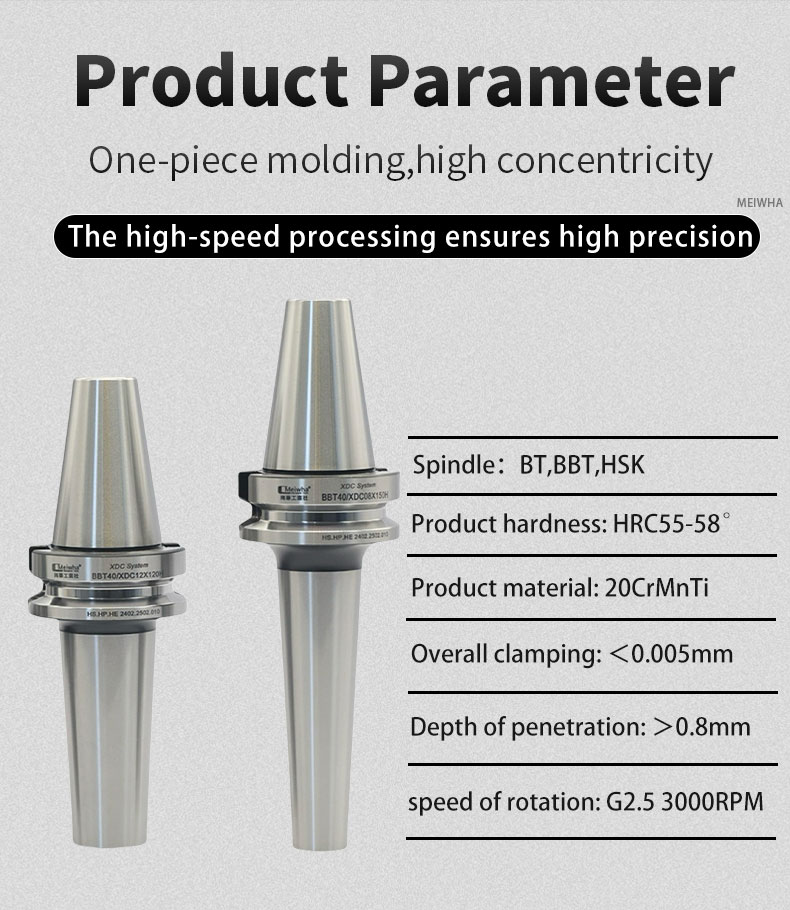

The material: using titanium alloy 20CrMnTi, wear-resistant and durable. The hardness of the handle is 55-58 degrees, the accuracy is 0.002mm to 0.005mm, the clamping is tight, and the stability is high.
Features: Good rigidity, high hardness, carbonitriding treatment, wear resistance and durability. High precision, good dynamic balance performance and strong stability. The BT tool holder is mainly used for clamping the tool holder and the tool in drilling, milling, reaming, tapping and grinding. Choose high-quality materials, after heat treatment, it has good elasticity and wear resistance, high precision and stable performance.
During machining, specific demands for tool holding are laid down by each industry and application. The range varies from high-speed cutting to heavy roughing.
With the Meiwha tool holders, We offers the right solution and tool clamping technology for all specific requirements. Therefore, each year we invest approximately 10 percent of our turnover in research and development.
Our primary interest is to offer our customers sustainable solutions which enable a competitive advantage. This way, you can always maintain your competitive advantage in machining.

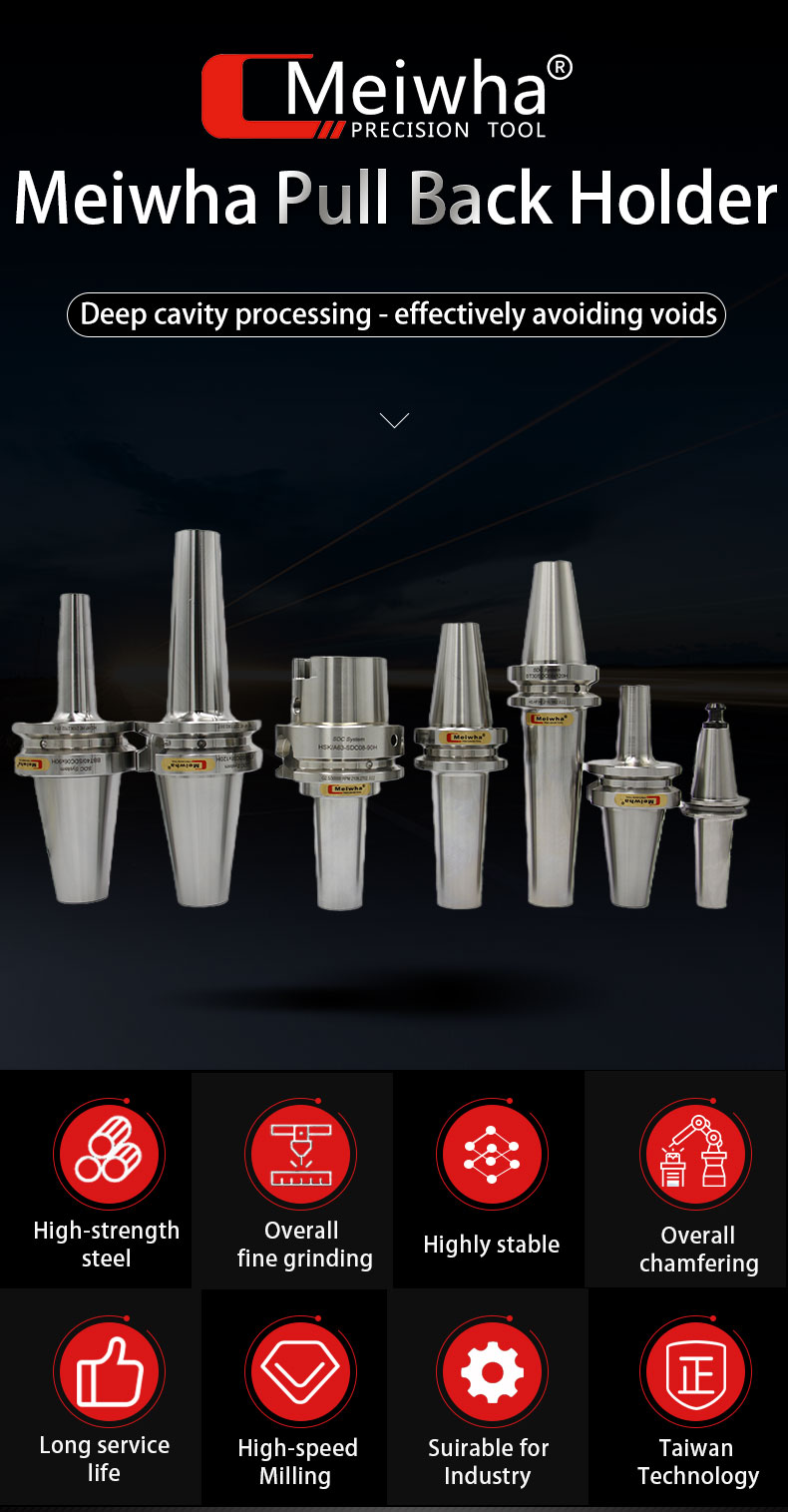

Meiwha Pull Back Holder
Deep cavity processing - effectively avoiding voids

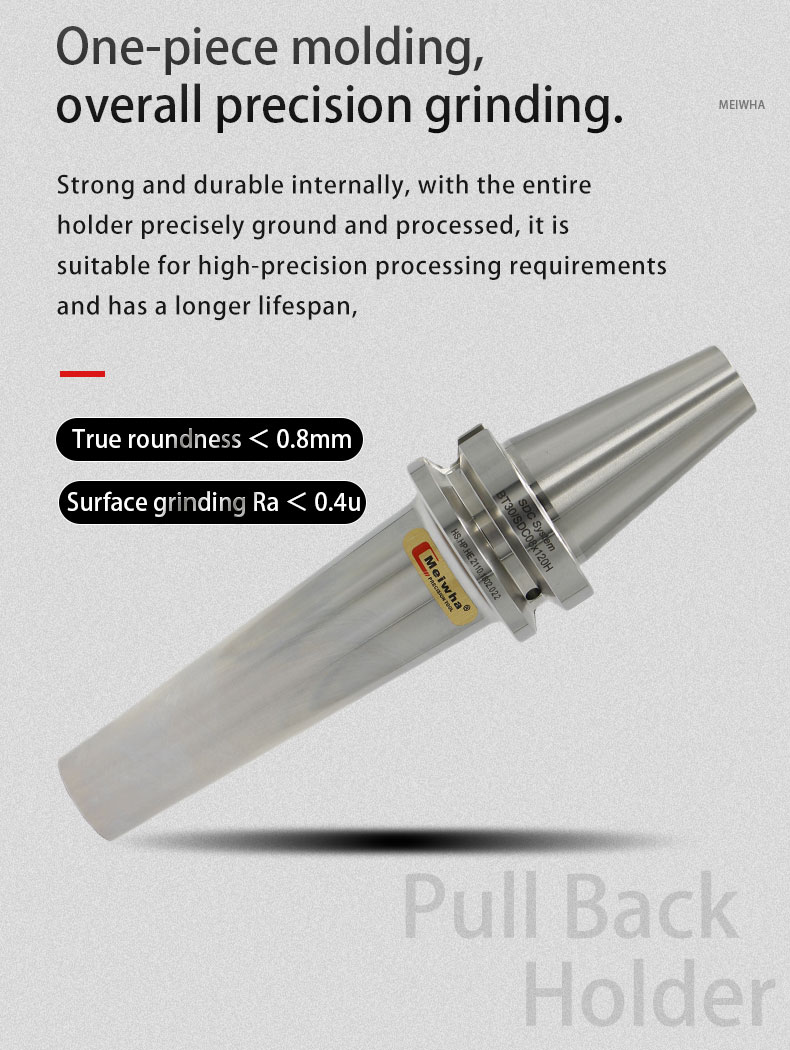

One Piece Molding, Overall Precision Grinding
Strong and durable internally, with the entire holder precisely ground and processed, it is suitable for high-precision processing requirements and has a longer lifespan.

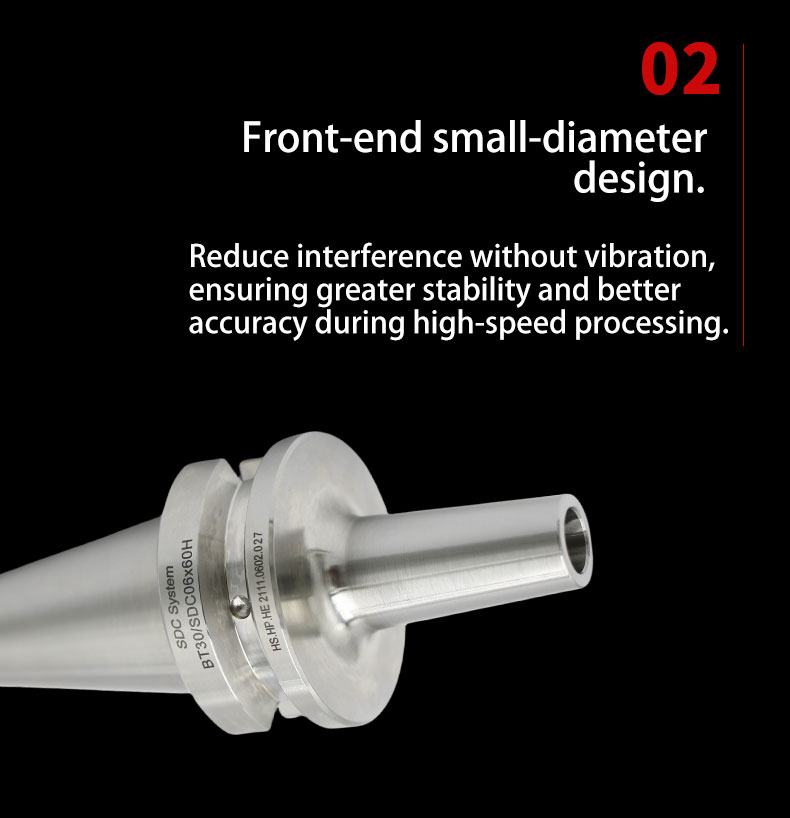

Built in collet Ant - interference
Embed the collet into the interior of the holder, with a no cap design, which enhances the integrity and improves the rigidity.
