Meiwha MW-900 Grinding Wheel Chamfer

Short Description:

Model: MW-900

Voltage: 220V/380V

Rate of work: 1.1KW

Motor speed: 11000r/min

Straight line chamfer range: 0-5mm

Curved chamfer range: 0-3mm

Chamfer Angle: 45°

Dimensions: 510*445*510

It is particularly suitable for batch processing. The chamfering of the parts has a high degree of smoothness and no burrs.


Product Detail

Product Tags

This type of chamfering machine can be opted for materials like marble, glass, and other similar materials. Also, this is user-friendly and provides grip to the user for handling the machinery.

There are major benefits that can be obtained from using the Chamfering machine is that laboring is not required when one can use the Chamfering machine instead of hard work. The cycle of the chamfering machine works rapidly so that the procedure of cutting down the edges of large material/metals like glass, wooden furniture and many more, in a shorter period of time. With the sturdy design of the equipment, the machine can be a reliable source for shaping materials for many years. The machine is preferable by various industries as it has the ability to reduce the labor work-load and can give the fine quality cutting of metals and materials.

1.Line speed is serveral times more than ordinary processing.

2.Chamfering machine complex high-speed desktop regardless of processed are straight or curve and irregular inside and outside the cavity of the chamfer edge, chamfer easy alternative to CNC machining centers, general machine tools equipment parts can not be processed chamfering.

3.Can be widely used in mold manufacturing, metal machinery machine tool manufactures, hydraulic parts valves manufactures, Textile machinery and the removal of the chamfer milling, Playing and other machining burr generated.

4.This chamfering machine is light weight, easy to operate, can effectively linear, irregular curve of the chamfer cutting, saving technology installed cards time, power.

5.To overcome the existing machinery and power tools processing disadvantage, with convienent, fast and accurate advantages, it is best choice for the metal objects cutting chamfers.

Grinding Wheel Chamfer Machine



Rounded corners and chamfered corners

The face plate is hard chrome plated and durable.





Bevel a straight line

After heat treatment and grinding from the guarantee of precision, more durable,

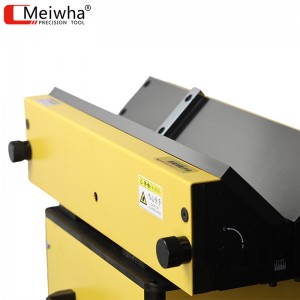

Slide Chamfering

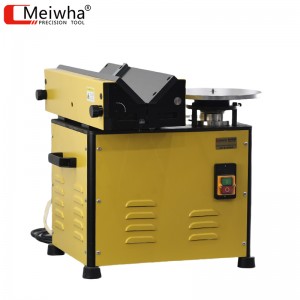

Complex Chamfer At Best Price

Hardened worktable processing

The worktable is hardened, durable and not easy to deform.

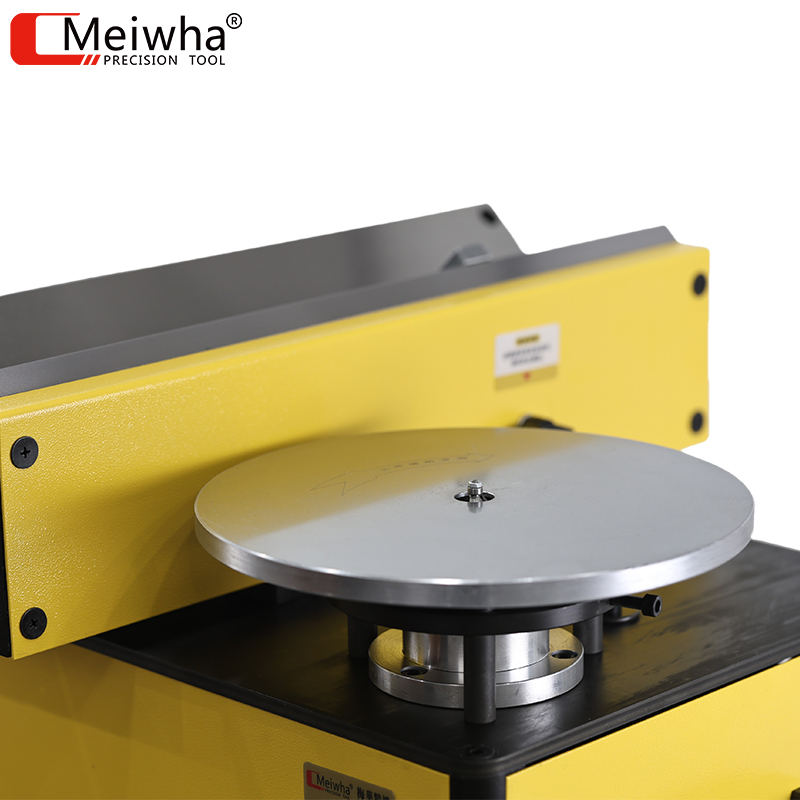

Disc chamfering-suitable for both straight and curved surfaces

The panel is coated with hard chrome, which is durable and long-lasting.

The bottom of the disc can be inverted either along the inner edge or along the outer curved edge.

Optional R-angle accessory

Grinding Wheel Chamfer Machine

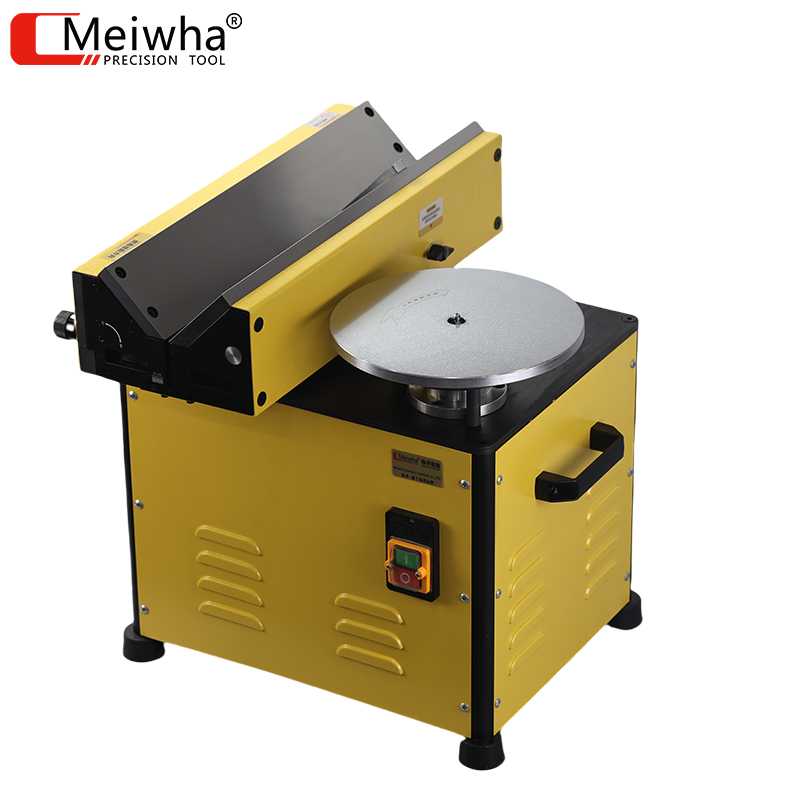

Complex Chamfer





Multiple materials easy to handle

Iron, aluminum, copper, carbon steel, stainless steel, aluminum alloy, powder metallurgy materials, plastic nylon, bakelite, etc.



FAQ

1.How to place an order?

M:Directly contact our salesperson by E-mail/Skype/ WhatsApp, We will feed back to you ASAP after received your order list.

2.How about the payment terms?

M:T/T, L/C, Cash;

3.What's your delivery way?

M: Express delivery, DHL, TNT, FEDEX, EMS air shipping, sea shipping for your request.

4.How about the lead time?

M: LT is around 7-10 days after receiving the prepayment.

5.Do you offer OEM?

Yes, we do. We can crave your logo and tool specification on the body of tools as we have laser machine. Also we can print customized on plastic boxes.
