High Precision Vise Model 108

Short Description:

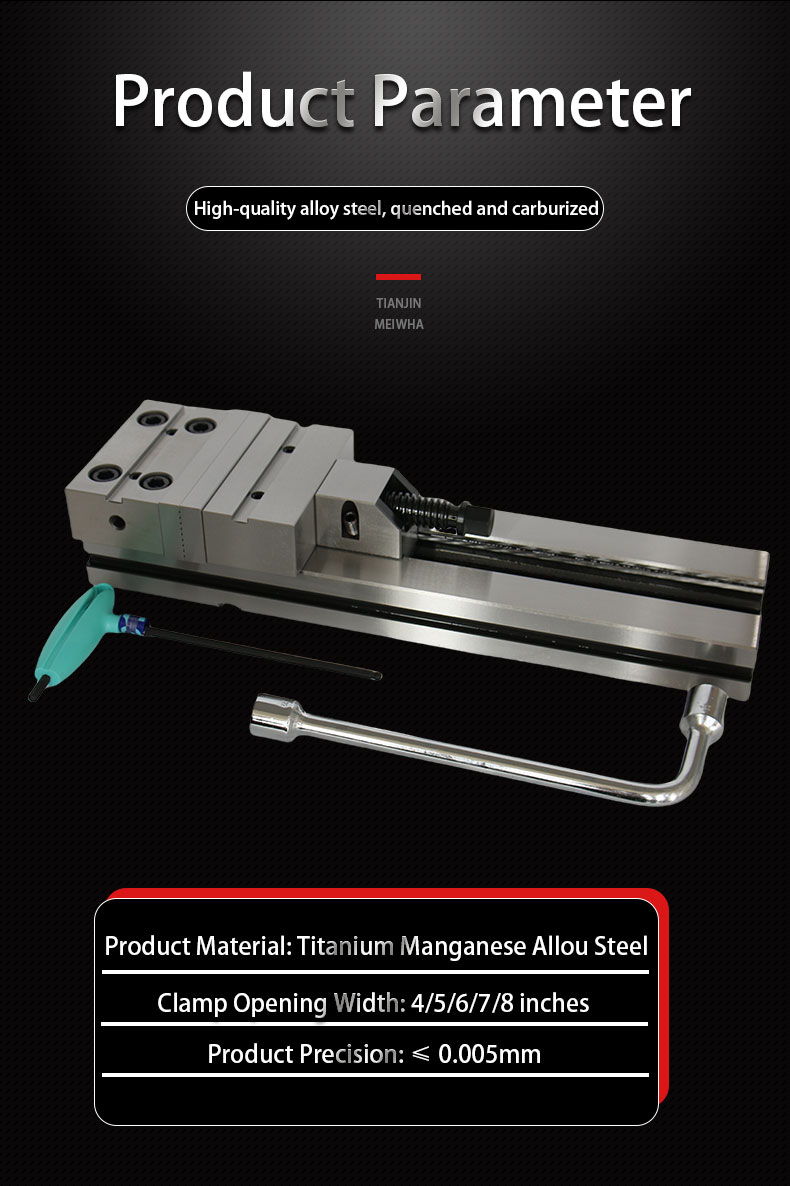

Product Material: Titanium Manganese Allou Steel

Clamp Opening Width:4/5/6/7/8 inches

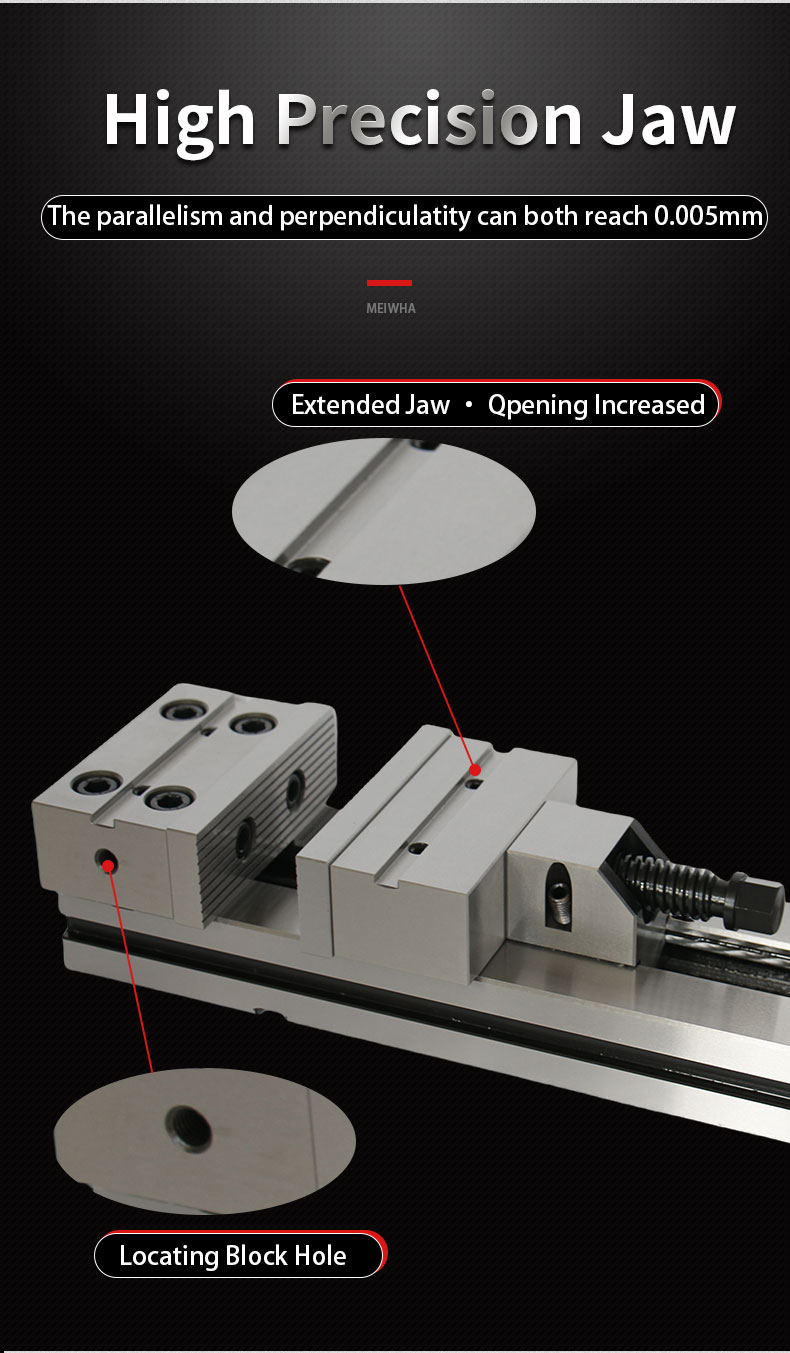

Product Precision: ≤0.005mm

Send email to us

Product Detail

Product Tags

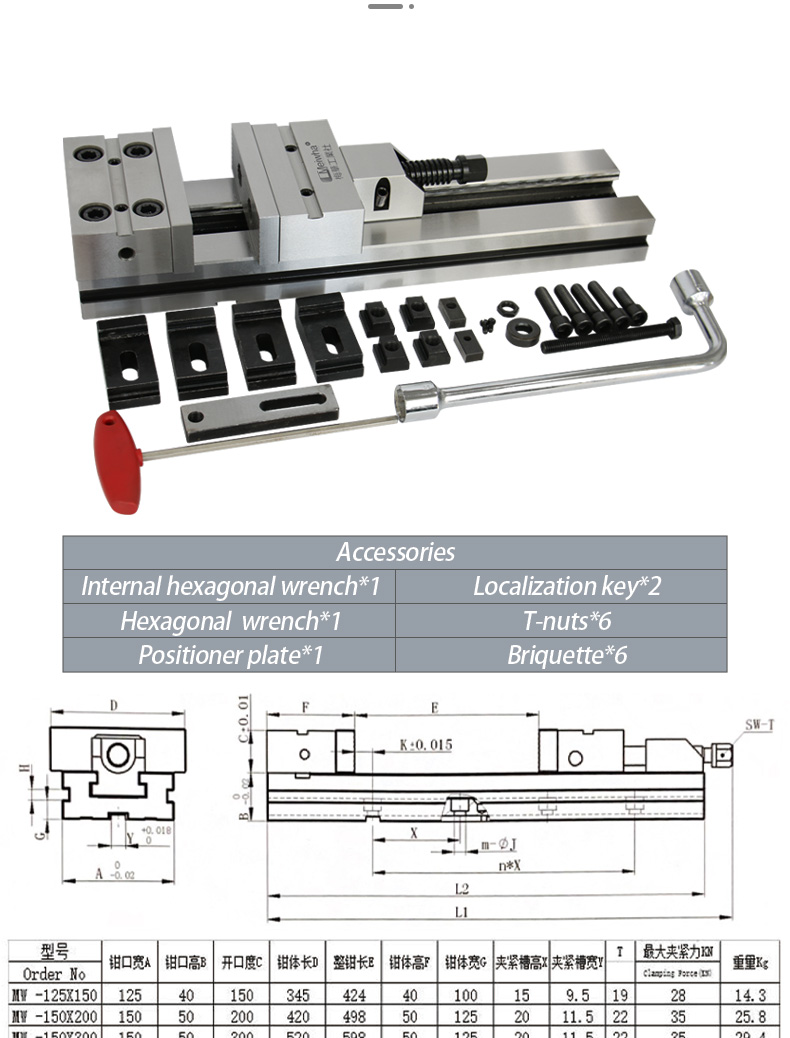

Cat.No	A	B	C	D	E	F	G	X	Y	T	KN	Weight
MW108-125*150	125	40	150	345	424	40	100	15	9.5	19	28	14.3
MW108-150*200	150	50	200	420	498	50	125	20	11.5	22	35	35.8
MW108-150*300	150	50	300	520	598	50	125	20	11.5	22	35	29.4
MW108-175*200	175	60	200	456	558	58	145	22	14	22	45	42.1
MW108-175*300	175	60	300	556	658	58	145	22	14	22	45	47.2
MW108-175*400	175	60	400	656	758	58	145	22	14	22	45	52.4
MW108-200*300	200	65	300	596	716	70	170	26	17.5	30	58	68
MW108-200*400	200	65	400	696	816	70	170	26	17.5	30	58	75.3
More:If you need the vise with special sizes. You can get that special-ordered

About Meiwha high precision vise:

Meiwha High Precision Vise Model can be mounted upright or sideways. Excellent to use when you have multiple vise setups when can not guarantee the exact location of the slot, or need machining the keyway if they used in pairs. Internal refined grinding treatment, smooth use. No jamming, rust and corrosion resistance.

The surface of the Meiwha Precision Vise is quenched, turned, and ground, enabling strong toughness, high tensile strength, and wear resistance. Guide rail surface of Meiwha Precision Vise is a refined ground seamless contact surface. Can be used upright without affecting the accuracy of clamping capacity, for CNC milling machines, drilling machines, and precision parts.

Product advantages:

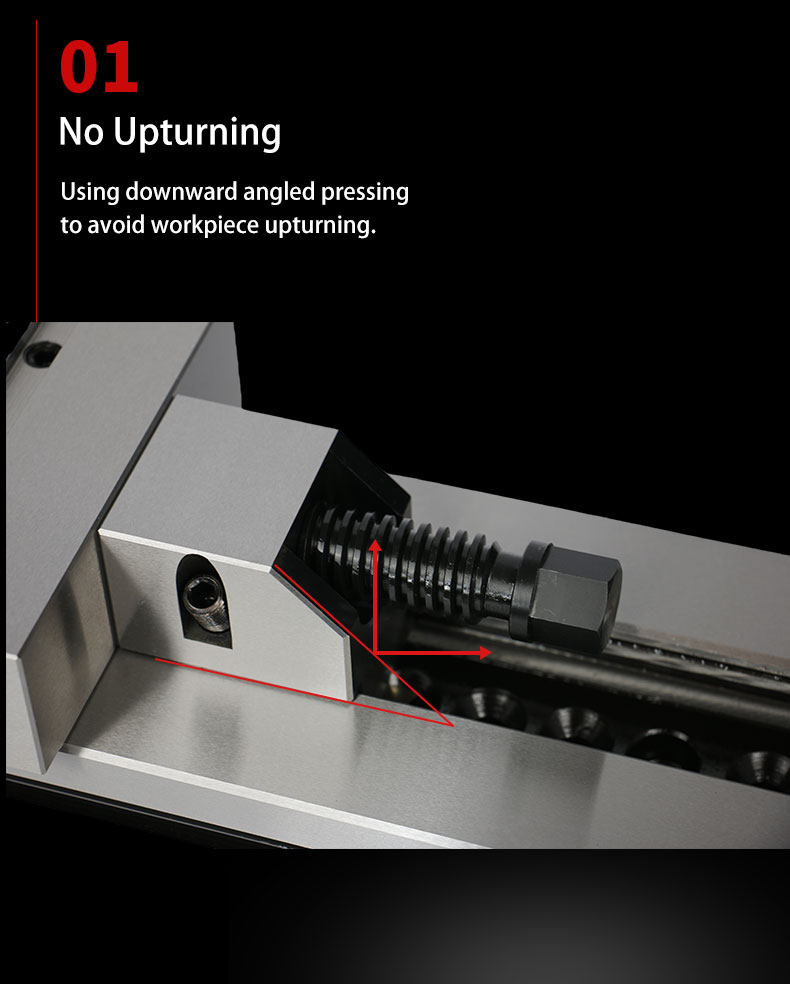

1. No Upturning: Using downward angled pressing to avoid workpiece upturning.

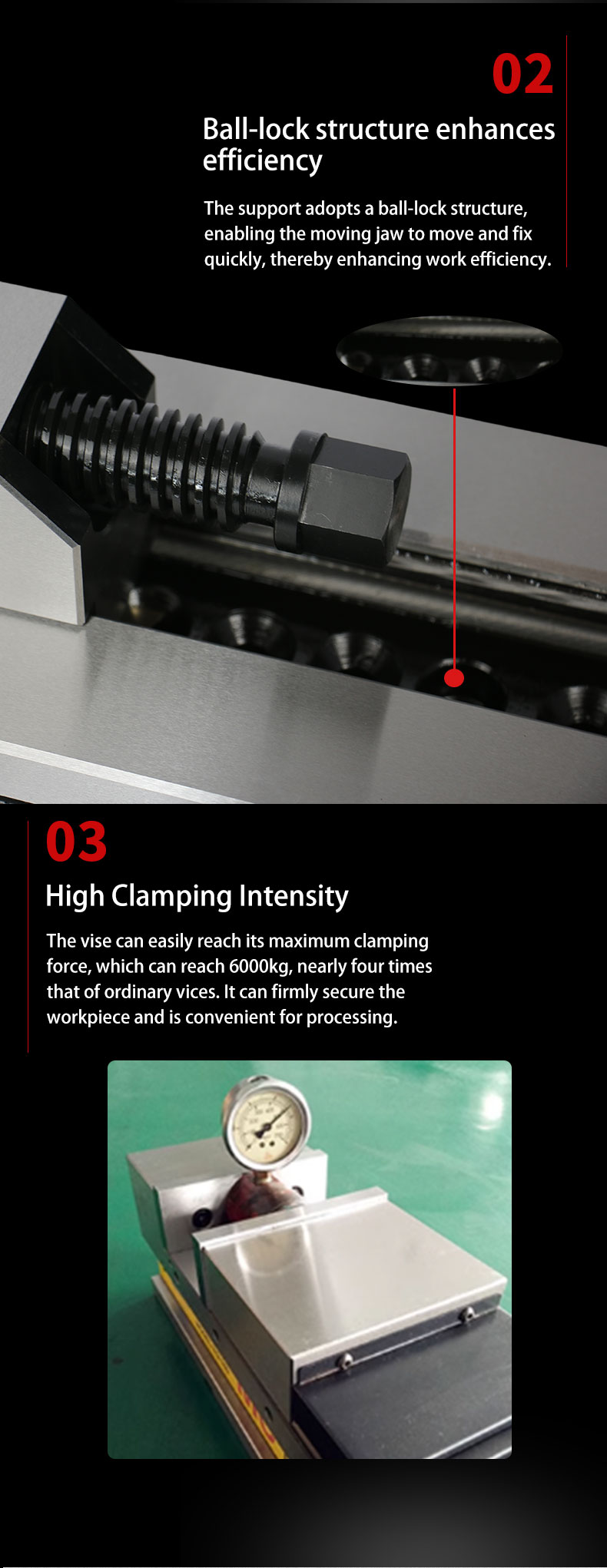

2.Ball-lock structure enhances efficiency: The support adopts a ball-lock structure, enabling the moving jaw to move and fix quickly, thereby enhancing work efficiency.

3.High clamping intensity: The vise can easily reach its maximum clamping force, which can reach 6000KG, nearly four times that of ordinary vices. It can firmly secure the workpiece and is convenient for processing.

Parameter details:

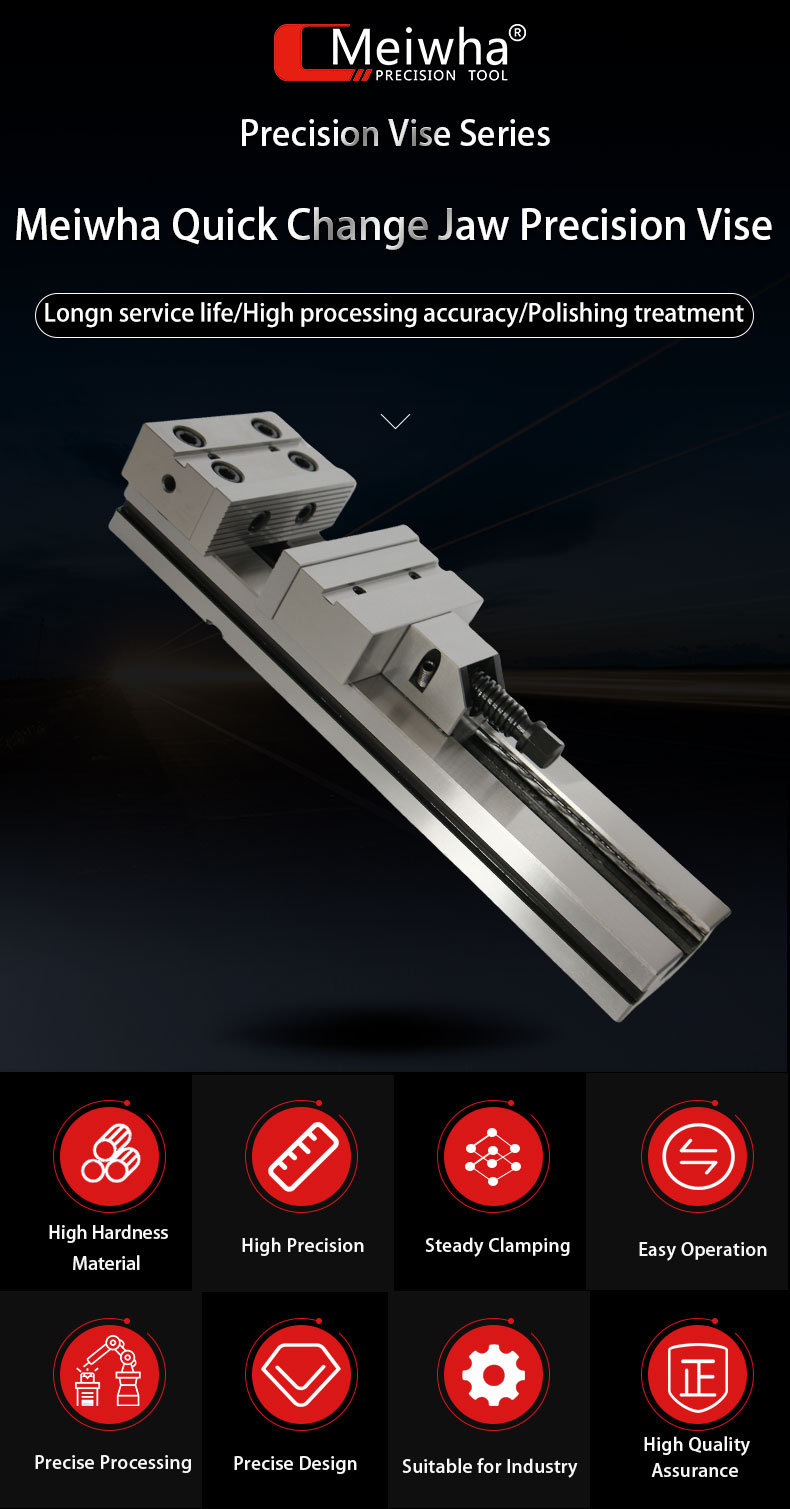

Precision Vise Series

Meiwha Quick Change Jaw Precision Vise

Longn service life, High processing accuracy, Polishing treatment

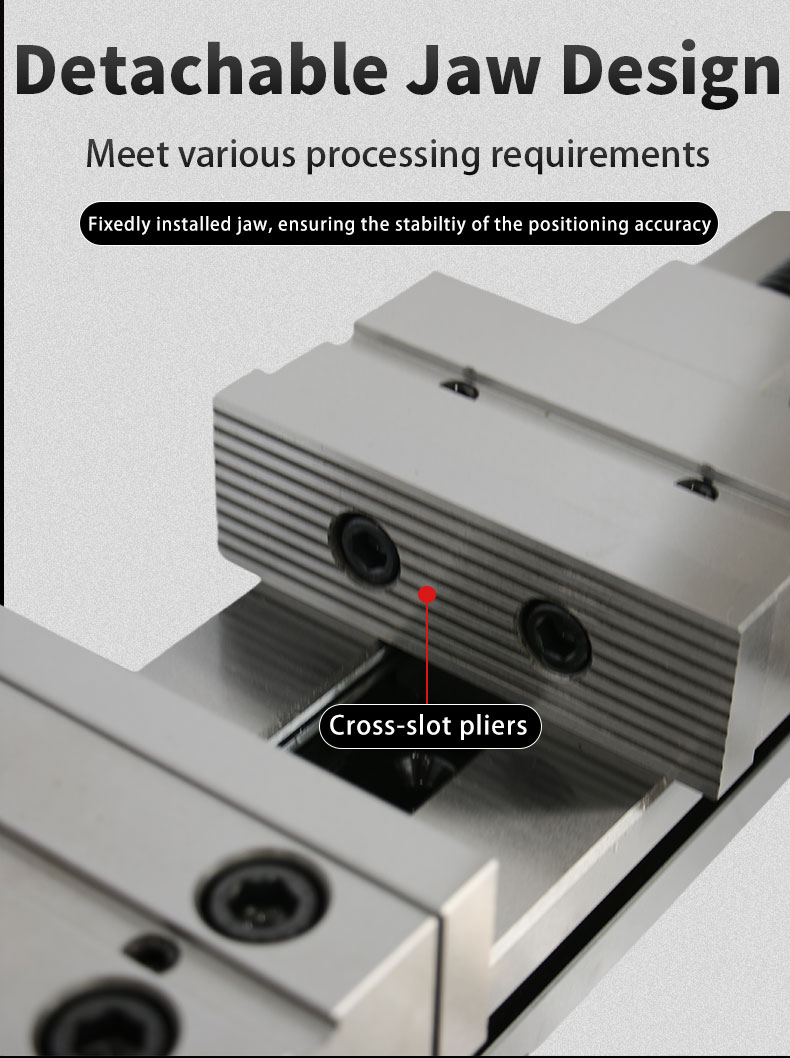

Detachable Jaw Design

meet various processing requirements

Fixedly installed jaw, ensuring the stabiltiy of the positioning accuracy.

Ball - lock structure enhances efficiency

The support adopts a ball - lock structure, enabling the moving jaw to move and fix quickly, thereby enhancing work efficiency.

High Clamping Intensity

The high precision vise model can easily reach its maximum clamping force, which can reach 6000KG, nearly four times that of ordinary vices. It can firmly secure the workpiece and is convenient for processing.

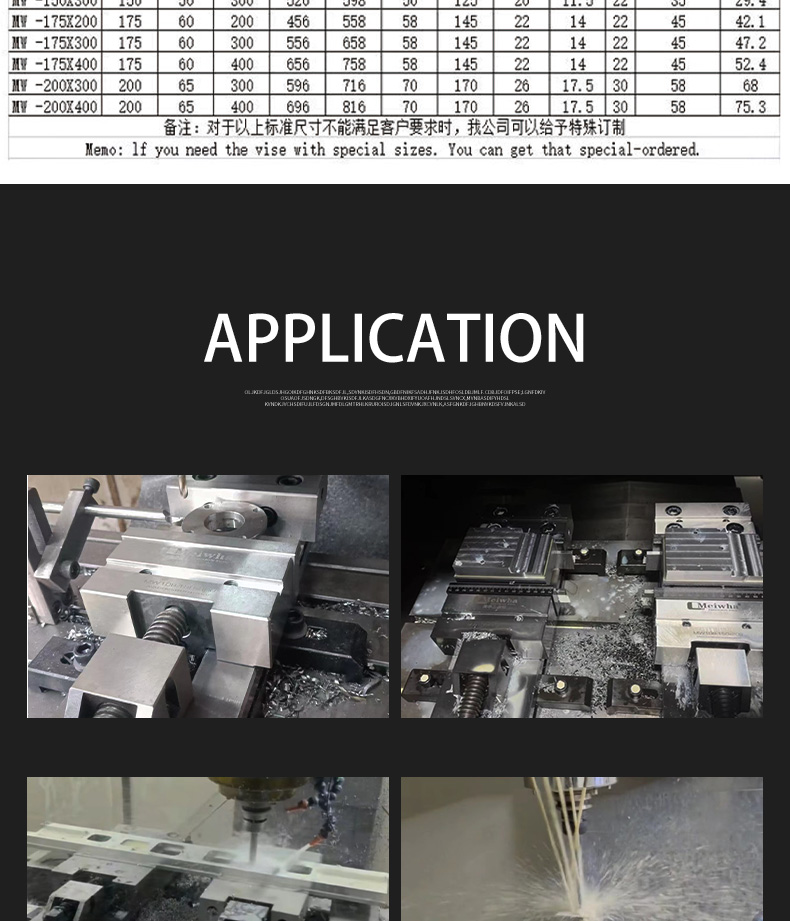

Widely used in machining centers, CNC machine tools, boring machines, milling machines, finding machines and other machine tools.

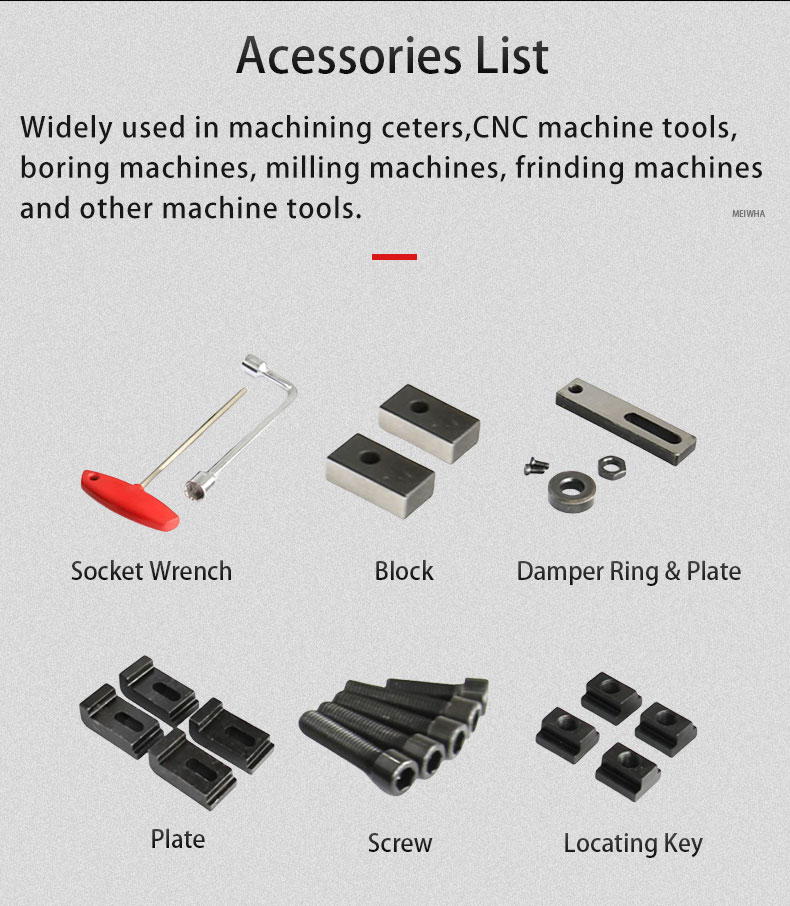

High Precision Vise Model 108 Accessories List

High Precision Vise socket Wrench， High Precision Vise Block, High Precision Vise Damper Ring & Plate, High Precision Vise Plate, High Precision Vise Screw, High Precision Vise Locating Key.
