Meiwha Combined Precision Vise

Short Description:

Made of high-quality alloy steel 20CrMnTi,carburizing treatment,the hardness of working surface reaches HRC58-62. Parallelism 0.005mm/100mm, and squareness 0.005mm. It have interchangeable base,fixed /movable vice jaw is quickly to clamp and easy to operate. Used for precision measurement and inspection, precision grinding. EDM and wire-cutting machine. Guarantee high accuracy in any position. Precision combination vise are not ordinary type it is a new research High Precision Tool Vice.

Send email to us

Product Detail

Product Tags

The most popular (and copied) vise in the world - The perfect mix: price, quality, versatility. All Meiwha vises and accessories are modular and components of all our vises will interchange with perfect alignment. The vises can be matched side to side with the highest precision and minimum of set up times thanks to many fixed reference points. All this is possible thanks to the high precision of the vise particularly as regards: - the base high; - the alignment with longitudinal key-nuts with respect to the fixed jaw; - the perpendicularity of the fixed jaw with respect to the vise base and the parallelism of the base top and bottom surfaces. Those features allows us to solve the most varied and complicated problems of clamping in a few seconds with the use of more vises.

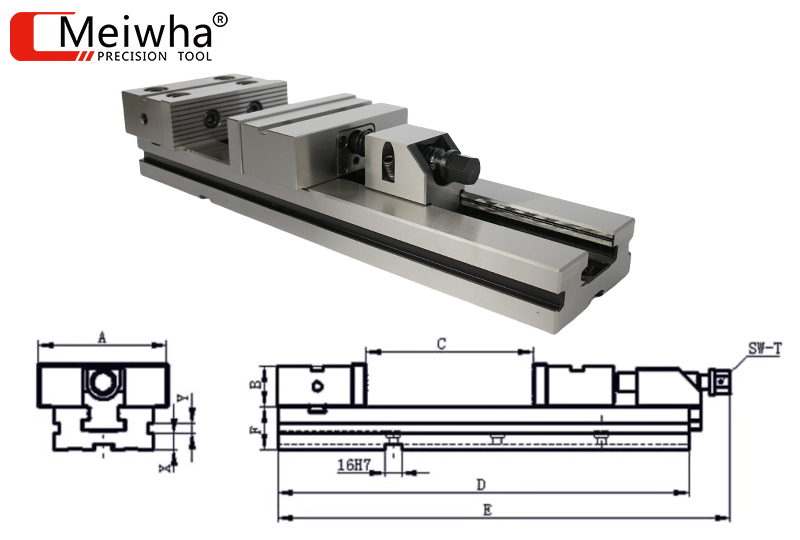

Cat.No	A	B	C	D	E	F	G	X	Y	T	KN	Weight
MW108-125*150	125	40	150	345	424	40	100	15	9.5	19	28	14.3
MW108-150*200	150	50	200	420	498	50	125	20	11.5	22	35	35.8
MW108-150*300	150	50	300	520	598	50	125	20	11.5	22	35	29.4
MW108-175*200	175	60	200	456	558	58	145	22	14	22	45	42.1
MW108-175*300	175	60	300	556	658	58	145	22	14	22	45	47.2
MW108-175*400	175	60	400	656	758	58	145	22	14	22	45	52.4
MW108-200*300	200	65	300	596	716	70	170	26	17.5	30	58	68
MW108-200*400	200	65	400	696	816	70	170	26	17.5	30	58	75.3
More:If you need the vise with special sizes. You can get that special-ordered
