Meiwha MH series milling cutters, HRC60, suitable for both dry and wet processing, ideal for complex working conditions.
PRODUCT INSTRUCTION:

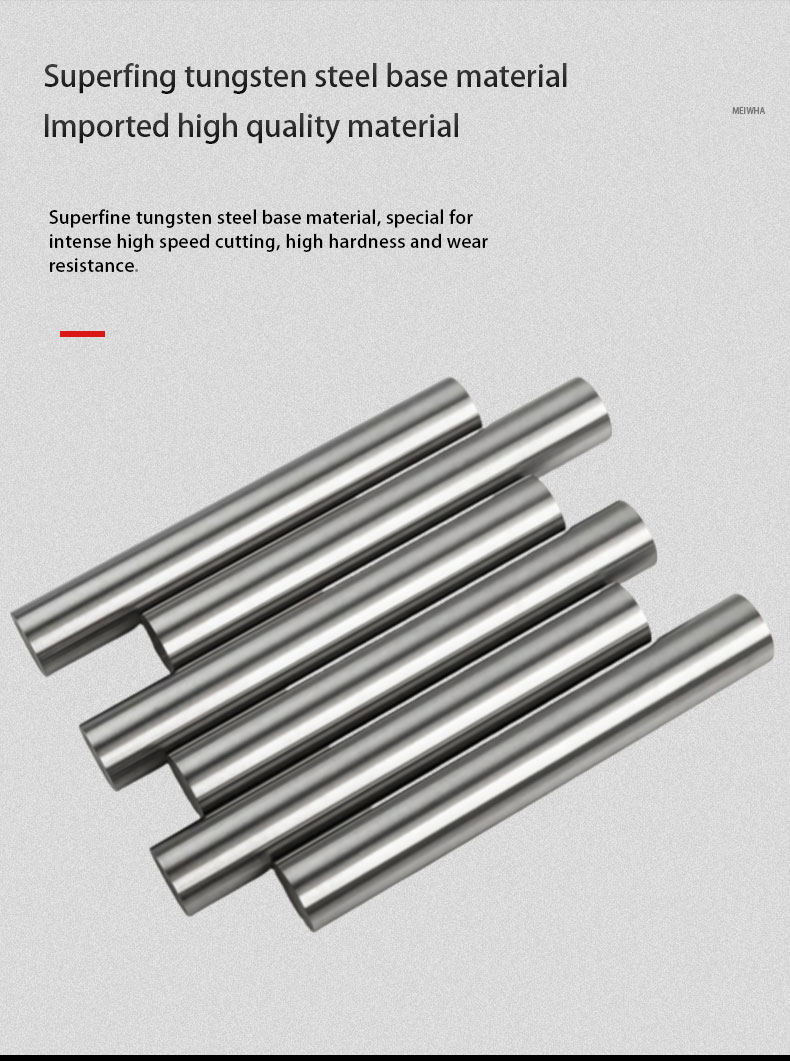

Material: Tungsten steel Carbide has the advantages of high hardness, wear resistance, toughness and corrosion resistance. It also has stronger heat resistance than HSS, so it can maintain hardness even at high temperature. Tungsten steel is mainly composed of tungsten carbide and cobalt, accounting for 99% of all components. Tungsten steel is also called cemented carbide and is considered to be the teeth of modern industry.

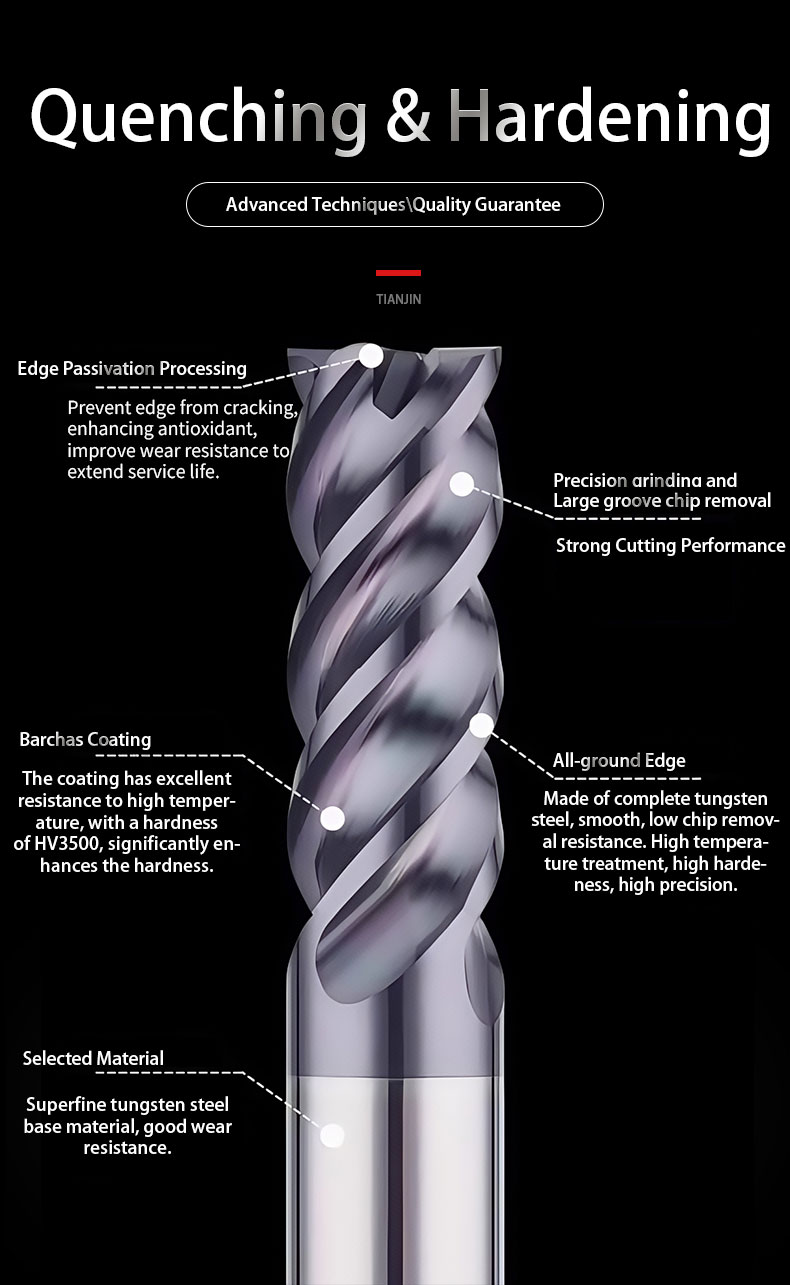

Detail design: High-precision cutting edge with suitable negative forefoot design, taking into account the strength and sharpness of the cutting edge. At the same time, the large core diameter is used to enhance the rigidity of the tool and make the cutting and chip removal stable.
Wide Application CNC End Mill：It can be used on many fields, such as metal processing, CNC machining and engineering using. Large chip flute design for smoother chip removal, making the workpiece smoother and brighter.
Parameter details:

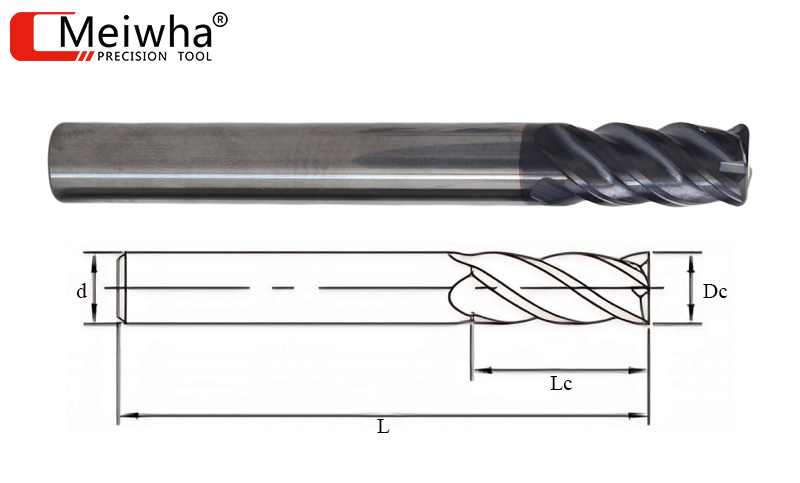

End Mill specification
| Cat.No | Size | ||||
| Flutes | Outer Dimaeter(Dc) | Blade Length (Lc) | Handle diameter(d) | Full Length(L) | |
| MW-MH4-010*2H*040*50L | 4 | 1 | 2 | 4 | 50 |
| MW-MH4-015*3H*040*50L | 4 | 1.5 | 3 | 4 | 50 |
| MW-MH4-020*4H*040*50L | 4 | 2 | 4 | 4 | 50 |
| MW-MH4-020*4H*040*75L | 4 | 2 | 4 | 4 | 75 |
| MW-MH4-025*5H*040*50L | 4 | 2.5 | 5 | 4 | 50 |
| MW-MH4-030*6H*040*50L | 4 | 3 | 6 | 4 | 50 |
| MW-MH4-030*6H*040*75L | 4 | 3 | 6 | 4 | 75 |
| MW-MH4-040*8H*040*50L | 4 | 4 | 8 | 4 | 50 |
| MW-MH4-040*8H*040*75L | 4 | 4 | 8 | 4 | 75 |
| MW-MH4-050*10H*060*50L | 4 | 5 | 10 | 6 | 50 |
| MW-MH4-050*10H*060*75L | 4 | 5 | 10 | 6 | 75 |
| MW-MH4-060*12H*060*50L | 4 | 6 | 12 | 6 | 50 |
| MW-MH4-060*12H*060*75L | 4 | 6 | 12 | 6 | 75 |
| MW-MH4-080*16H*080*60L | 4 | 8 | 16 | 8 | 60 |
| MW-MH4-080*16H*080*75L | 4 | 8 | 16 | 8 | 75 |
| MW-MH4-080*16H*080*100L | 4 | 8 | 16 | 8 | 100 |
| MW-MH4-10.0*20H*10.0*75L | 4 | 10 | 20 | 10 | 75 |
| MW-MH4-10.0*20H*10.0*100L | 4 | 10 | 20 | 10 | 100 |
| MW-MH4-12.0*24H*12.0*75L | 4 | 12 | 24 | 12 | 75 |
| MW-MH4-12.0*24H*12.0*100L | 4 | 12 | 24 | 12 | 100 |
| MW-MH4-16.0*32H*16.0*100L | 4 | 16 | 32 | 16 | 100 |
| MW-MH4-16.0*32H*16.0*150L | 4 | 16 | 32 | 16 | 150 |
Ball End Milling Cutter specification
| Cat.No | Size | |||||
| Flutes | R Angle |
Outer Dimaeter(Dc) | Blade Length (Lc) | Handle diameter(d) | Full Length(L) | |
| MW-MH2R-010*R0.5*1.5H*040*50L | 2 | 0.5 | 1 | 1.5 | 4 | 50 |
| MW-MH2R-010*R0.5*1.5H*040*75L | 2 | 0.5 | 1 | 1.5 | 4 | 75 |
| MW-MH2R-015*R0.75*2.3H*040*50L | 2 | 0.75 | 1.5 | 2.3 | 4 | 50 |
| MW-MH2R-015*R0.75*2.3H*040*75L | 2 | 0.75 | 1.5 | 2.3 | 4 | 75 |
| MW-MH2R-020*R1*3H*040*50L | 2 | 1 | 2 | 3 | 4 | 50 |
| MW-MH2R-020*R1*3H*040*75L | 2 | 1 | 2 | 3 | 4 | 75 |
| MW-MH2R-025*R1.25*4H*40*50L | 2 | 1.25 | 2.5 | 4 | 4 | 50 |
| MW-MH2R-030*R1.5*4.5H*040*50L | 2 | 1.5 | 3 | 4.5 | 4 | 50 |
| MW-MH2R-030*R1.5*4.5H*040*75L | 2 | 1.5 | 3 | 4.5 | 4 | 75 |
| MW-MH2R-030*R1.5*4.5H*060*50L | 2 | 1.5 | 3 | 4.5 | 6 | 50 |
| MW-MH2R-040*R2*6H*040*50L | 2 | 2 | 4 | 6 | 4 | 50 |
| MW-MH2R-040*R2*6H*040*75L | 2 | 2 | 4 | 6 | 4 | 75 |
| MW-MH2R-040*R2*6H*060*50L | 2 | 2 | 4 | 6 | 6 | 50 |
| MW-MH2R-050*R2.5*7.5H*060*75L | 2 | 2.5 | 5 | 7.5 | 6 | 75 |
| MW-MH2R-050*R2.5*8H*060*50L | 2 | 2.5 | 5 | 8 | 6 | 50 |
| MW-MH2R-056*R2.8*15H*060*50L | 2 | 2.8 | 5.6 | 15 | 6 | 50 |
| MW-MH2R-057*R2.8*15H*060*50L | 2 | 2.85 | 5.7 | 15 | 6 | 50 |
| MW-MH2R-060*R3*9H*060*50L | 2 | 3 | 6 | 9 | 6 | 50 |
| MW-MH2R-060*R3*9H*060*75L | 2 | 3 | 6 | 9 | 6 | 75 |
| MW-MH2R-070*R3.5*10H*070*60L | 2 | 3.5 | 7 | 10 | 7 | 60 |
| MW-MH2R-080*R4*12H*080*100L | 2 | 4 | 8 | 12 | 8 | 100 |
| MW-MH2R-080*R4*12H*080*60L | 2 | 4 | 8 | 12 | 8 | 60 |
| MW-MH2R-080*R4*12H*080*75L | 2 | 4 | 8 | 12 | 8 | 75 |
| MW-MH2R-090*R4.5*13.5H*090*75L | 2 | 4.5 | 9 | 13.5 | 9 | 75 |
| MW-MH2R-10.0*R5*15H*10.0*75L | 2 | 5 | 10 | 15 | 10 | 75 |
| MW-MH2R-10.0*R5*15H*10.0*100L | 2 | 5 | 10 | 15 | 10 | 100 |
| MW-MH2R-12.0*R6*18H*12.0*75L | 2 | 6 | 12 | 18 | 12 | 75 |
| MW-MH2R-12.0*R6*18H*12.0*100L | 2 | 6 | 12 | 18 | 12 | 100 |
| MW-MH2R-12.0*R6*18H*12.0*150L | 2 | 6 | 12 | 18 | 12 | 150 |
| MW-MH2R-16.0*R8*24H*16.0*100L | 2 | 8 | 16 | 24 | 16 | 100 |
Ball Nose Milling Cutter specification
| Cat.No | Size | |||||
| Flutes | R Angle |
Outer Dimaeter(Dc) | Blade Length (Lc) | Handle diameter(d) | Full Length(L) | |
| MW-MH4R-010*R0.1*2H*040*50L | 4 | 0.1 | 1 | 2 | 4 | 50 |
| MW-MH4R-020*R0.1*4H*040*50L | 4 | 0.1 | 2 | 4 | 4 | 50 |
| MW-MH4R-010*R0.2*2H*040*50L | 4 | 0.2 | 1 | 2 | 4 | 50 |
| MW-MH4R-010*R0.2*2H*040*75L | 4 | 0.2 | 1 | 2 | 4 | 75 |
| MW-MH4R-015*R0.2*3H*040*50L | 4 | 0.2 | 1.5 | 3 | 4 | 50 |
| MW-MH4R-015*R0.2*3H*040*75L | 4 | 0.2 | 1.5 | 3 | 4 | 75 |
| MW-MH4R-020*R0.2*4H*040*50L | 4 | 0.2 | 2 | 4 | 4 | 50 |
| MW-MH4R-020*R0.2*4H*040*75L | 4 | 0.2 | 2 | 4 | 4 | 75 |
| MW-MH4R-025*R0.2*5H*040*50L | 4 | 0.2 | 2.5 | 5 | 4 | 50 |
| MW-MH4R-030*R0.2*6H*040*50L | 4 | 0.2 | 3 | 6 | 4 | 50 |
| MW-MH4R-030*R0.2*6H*040*75L | 4 | 0.2 | 3 | 6 | 4 | 75 |
| MW-MH4R-040*R0.2*8H*040*50L | 4 | 0.2 | 4 | 8 | 4 | 50 |
| MW-MH4R-040*R0.2*8H*040*75L | 4 | 0.2 | 4 | 8 | 4 | 75 |
| MW-MH4R-050*R0.2*10H*060*50L | 4 | 0.2 | 5 | 10 | 6 | 50 |
| MW-MH4R-060*R0.2*12H*060*50L | 4 | 0.2 | 6 | 12 | 6 | 50 |
| MW-MH4R-060*R0.2*12H*060*75L | 4 | 0.2 | 6 | 12 | 6 | 75 |
| MW-MH4R-080*R0.2*16H*080*60L | 4 | 0.2 | 8 | 16 | 8 | 60 |
| MW-MH4R-080*R0.2*16H*080*75L | 4 | 0.2 | 8 | 16 | 8 | 75 |
| MW-MH4R-080*R0.2*16H*080*100L | 4 | 0.2 | 8 | 16 | 8 | 100 |
| MW-MH4R-020*R0.5*4H*040*50L | 4 | 0.5 | 2 | 4 | 4 | 50 |
| MW-MH4R-025*R0.5*5H*040*50L | 4 | 0.5 | 2.5 | 5 | 4 | 50 |
| MW-MH4R-030*R0.5*6H*040*50L | 4 | 0.5 | 3 | 6 | 4 | 50 |
| MW-MH4R-030*R0.5*6H*040*75L | 4 | 0.5 | 3 | 6 | 4 | 75 |
| MW-MH4R-040*R0.5*8H*040*50L | 4 | 0.5 | 4 | 8 | 4 | 50 |
| MW-MH4R-040*R0.5*8H*040*75L | 4 | 0.5 | 4 | 8 | 4 | 75 |
| MW-MH4R-050*R0.5*10H*060*50L | 4 | 0.5 | 5 | 10 | 6 | 50 |
| MW-MH4R-060*R0.5*12H*060*50L | 4 | 0.5 | 6 | 12 | 6 | 50 |
| MW-MH4R-060*R0.5*12H*060*75L | 4 | 0.5 | 6 | 12 | 6 | 75 |
| MW-MH4R-080*R0.5*16H*080*60L | 4 | 0.5 | 8 | 16 | 8 | 60 |
| MW-MH4R-080*R0.5*16H*080*75L | 4 | 0.5 | 8 | 16 | 8 | 75 |
| MW-MH4R-080*R0.5*16H*080*100L | 4 | 0.5 | 8 | 16 | 8 | 100 |
| MW-MH4R-10.0*R0.5*20H*10.0*75L | 4 | 0.5 | 10 | 20 | 10 | 75 |
| MW-MH4R-10.0*R0.5*20H*10.0*100L | 4 | 0.5 | 10 | 20 | 10 | 100 |
| MW-MH4R-12.0*R0.5*24H*12.0*75L | 4 | 0.5 | 12 | 24 | 12 | 75 |
| MW-MH4R-12.0*R0.5*24H*12.0*100L | 4 | 0.5 | 12 | 24 | 12 | 100 |
| MW-MH4R-040*R1*8H*040*50L | 4 | 1 | 4 | 8 | 4 | 50 |
| MW-MH4R-050*R1*10H*060*50L | 4 | 1 | 5 | 10 | 6 | 50 |
| MW-MH4R-060*R1*12H*060*50L | 4 | 1 | 6 | 12 | 6 | 50 |
| MW-MH4R-060*R1*12H*060*75L | 4 | 1 | 6 | 12 | 6 | 75 |
| MW-MH4R-080*R1*16H*080*60L | 4 | 1 | 8 | 16 | 8 | 60 |
| MW-MH4R-080*R1*16H*080*75L | 4 | 1 | 8 | 16 | 8 | 75 |
| MW-MH4R-080*R1*16H*080*100L | 4 | 1 | 8 | 16 | 8 | 100 |
| MW-MH4R-10.0*R1*20H*10.0*75L | 4 | 1 | 10 | 20 | 10 | 75 |
| MW-MH4R-10.0*R1*20H*10.0*100L | 4 | 1 | 10 | 20 | 10 | 100 |
| MW-MH4R-10.0*R1*25H*10.0*75L | 4 | 1 | 10 | 25 | 10 | 75 |
| MW-MH4R-12.0*R1*24H*12.0*75L | 4 | 1 | 12 | 24 | 12 | 75 |
| MW-MH4R-12.0*R1*24H*12.0*100L | 4 | 1 | 12 | 24 | 12 | 100 |
| MW-MH4R-12.0*R1.5*24H*12.0*75L | 4 | 1.5 | 12 | 24 | 12 | 75 |
| MW-MH4R-12.0*R1.5*24H*12.0*100L | 4 | 1.5 | 12 | 24 | 12 | 100 |
| MW-MH4R-080*R2*16H*080*75L | 4 | 2 | 8 | 16 | 8 | 75 |
| MW-MH4R-080*R2*16H*080*100L | 4 | 2 | 8 | 16 | 8 | 100 |
| MW-MH4R-10.0*R2*20H*10.0*75L | 4 | 2 | 10 | 20 | 10 | 75 |
| MW-MH4R-10.0*R2*20H*10.0*100L | 4 | 2 | 10 | 20 | 10 | 100 |
| MW-MH4R-12.0*R2*24H*12.0*75L | 4 | 2 | 12 | 24 | 12 | 75 |
| MW-MH4R-12.0*R2*24H*12.0*100L | 4 | 2 | 12 | 24 | 12 | 100 |
